Standard Friction Hinges

As a designer and manufacturer of friction hinges, LEECO offers standard lines of friction hinges and torque hinges that can be applied to most position control applications. With our component modules, customers can easily specify their required torque value within the available torque range without extra cost. LEECO also provide service for custom brackets to ensure perfect installation onto your friction hinge and torque hinge applications.

For over 20 years experience in friction hinge design and manufacturing, our modular automatic production process allows us to achieve high quality production efficiency with competitive cost. Please feel free to contact us for more information of our friction torque hinges.

Overview of Standard Friction Hinges

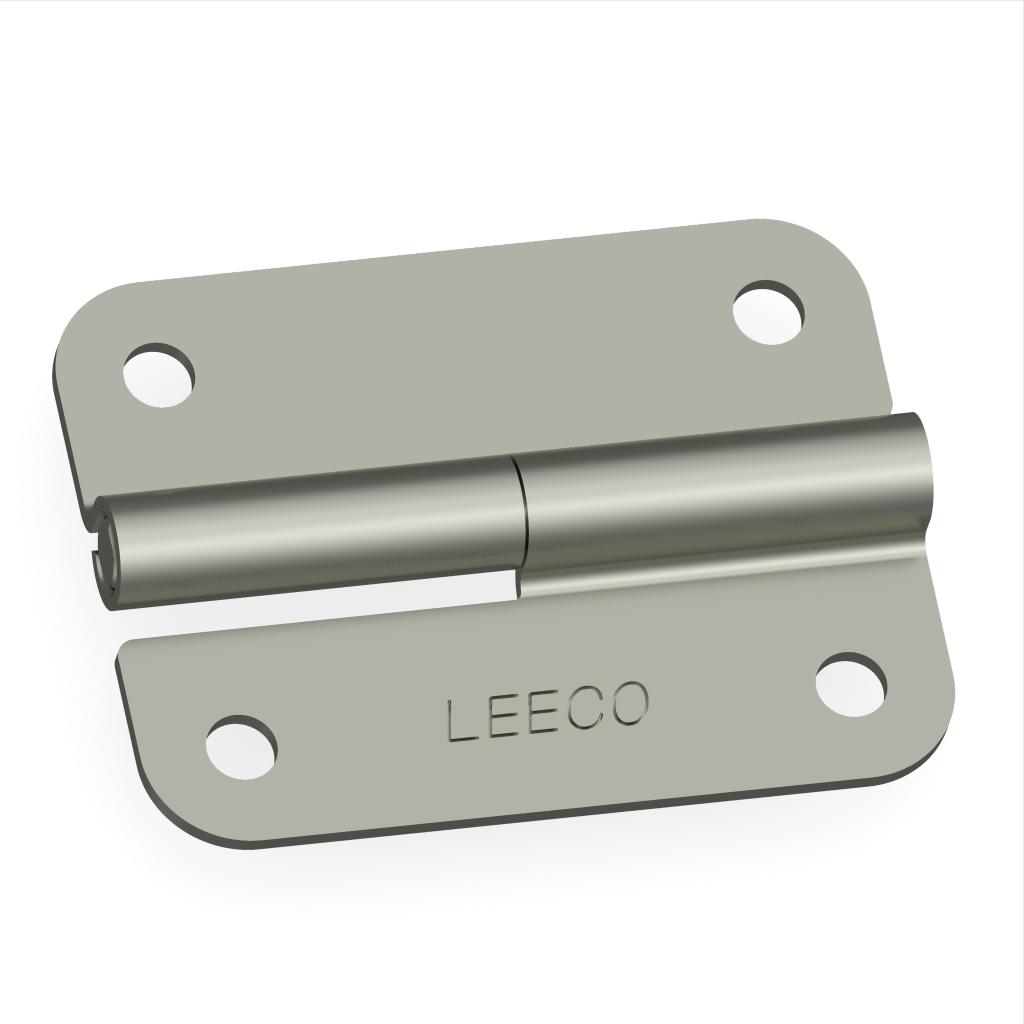

QA7 Series

  • Asymmetric torque: 1.1 - 2.7 Nm
  • Over 25,000 operation cycles
  • 280 degree shaft rotation

This is a qa7 torque hinge

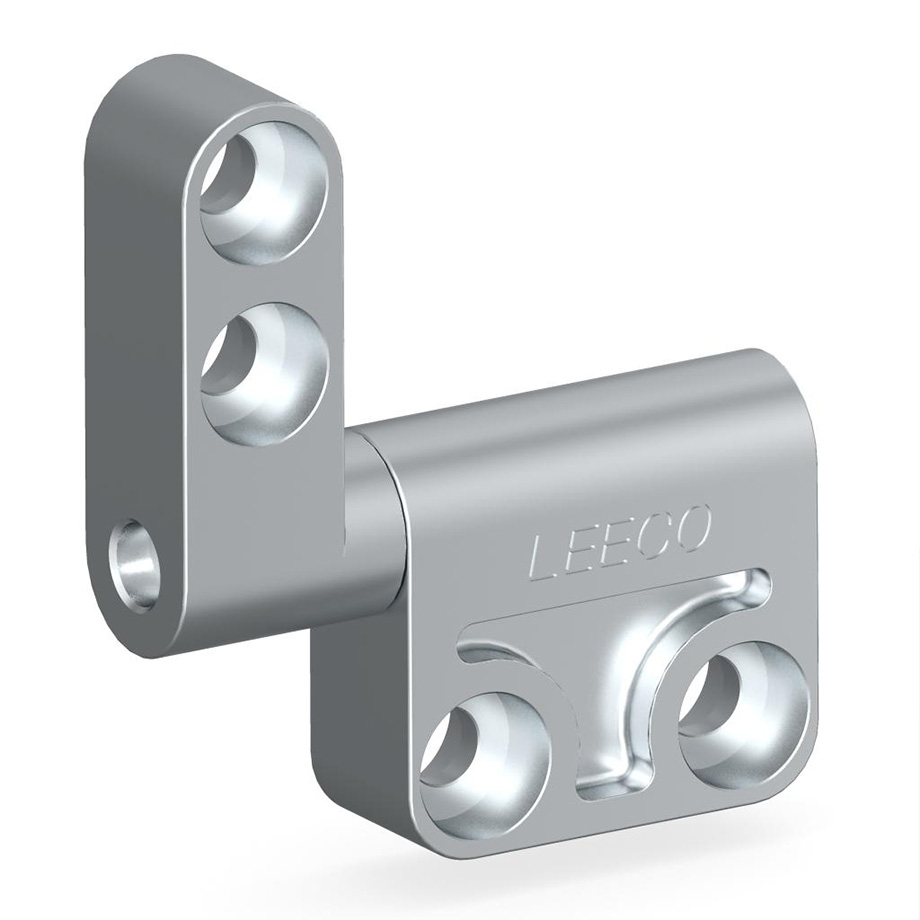

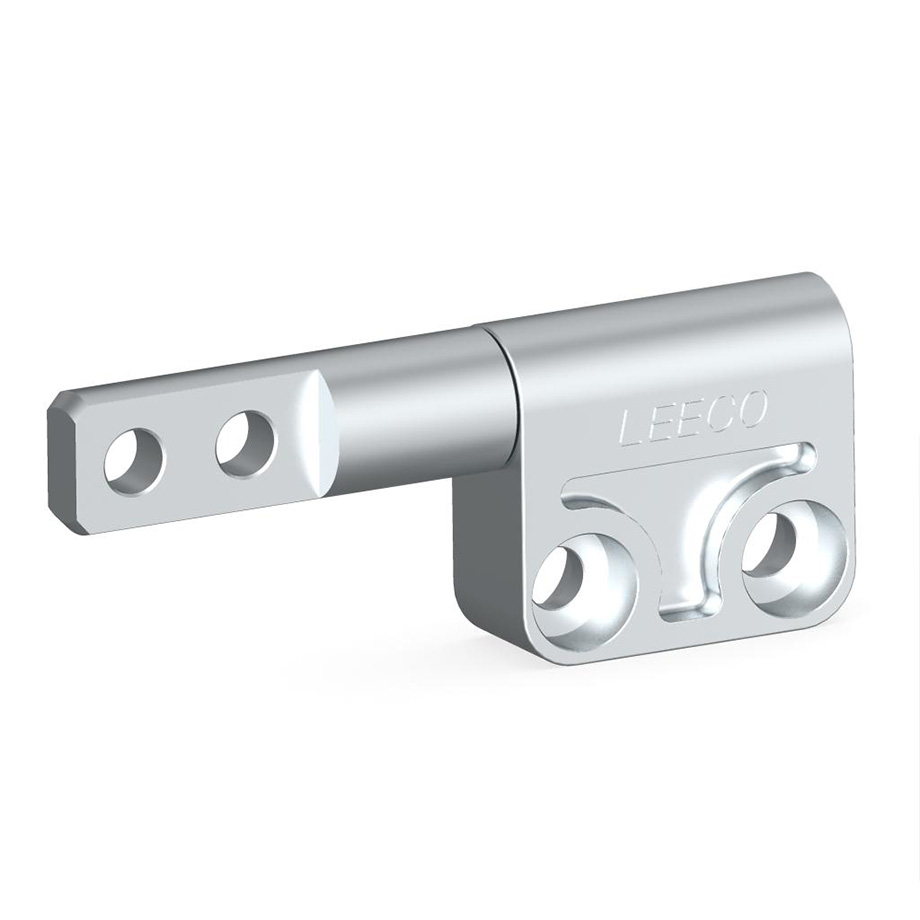

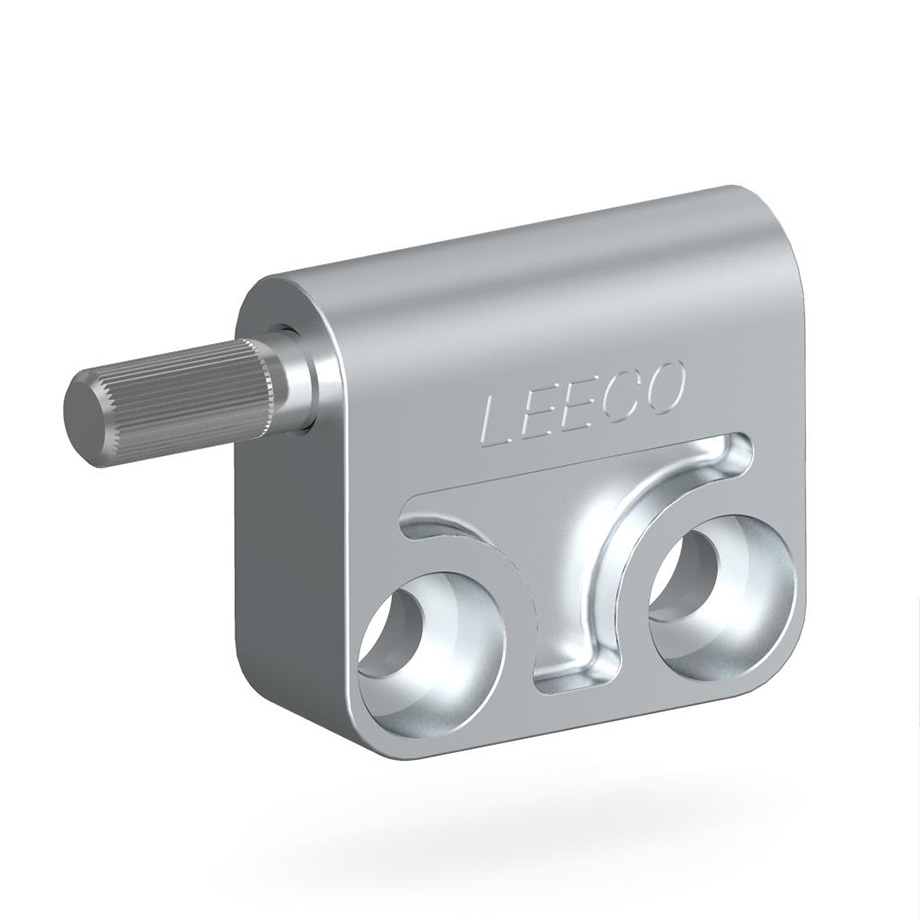

CT10 Series

  • Symmetric torque: 0.9 - 2.7 Nm
  • Asymmetric torque: 0.8 - 3.4 Nm
  • Over 25,000 operation cycles
  • 360 degree shaft rotation
This is CT10 series torque hinge

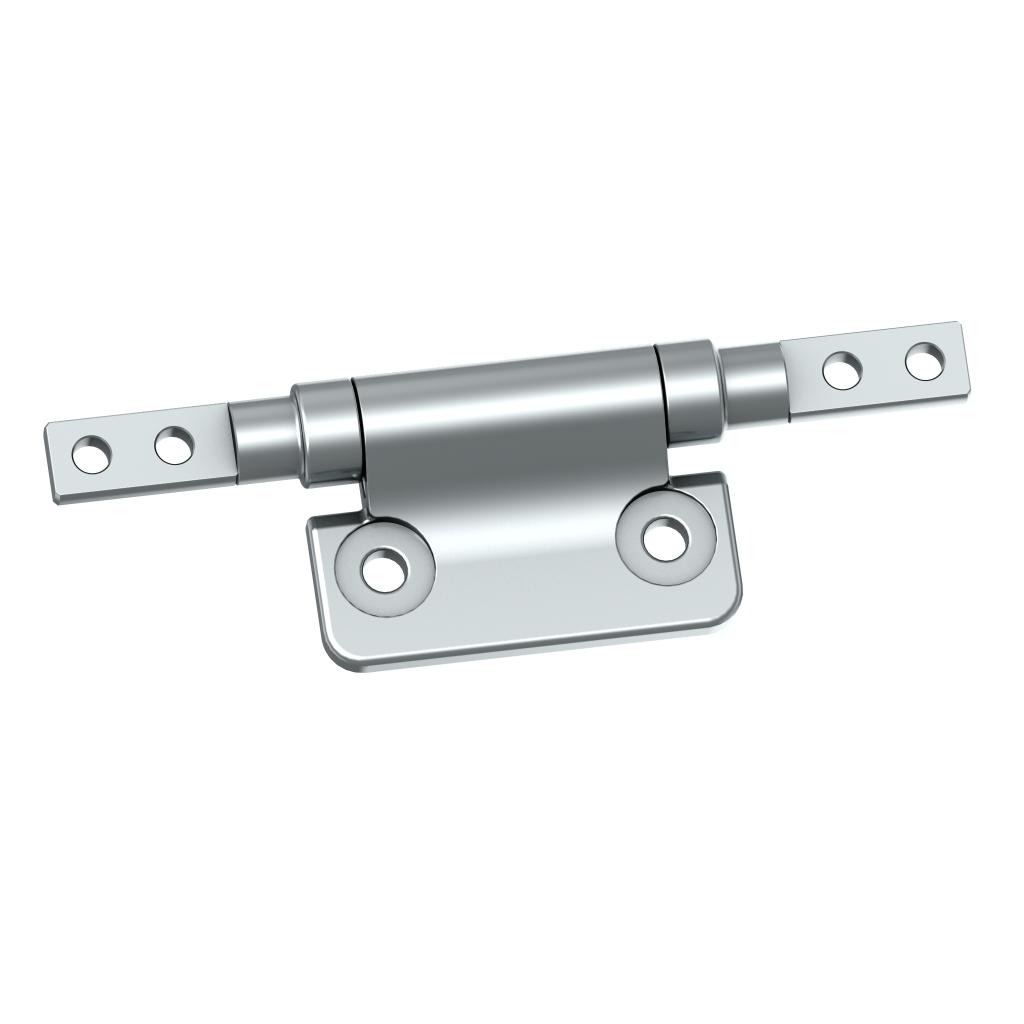

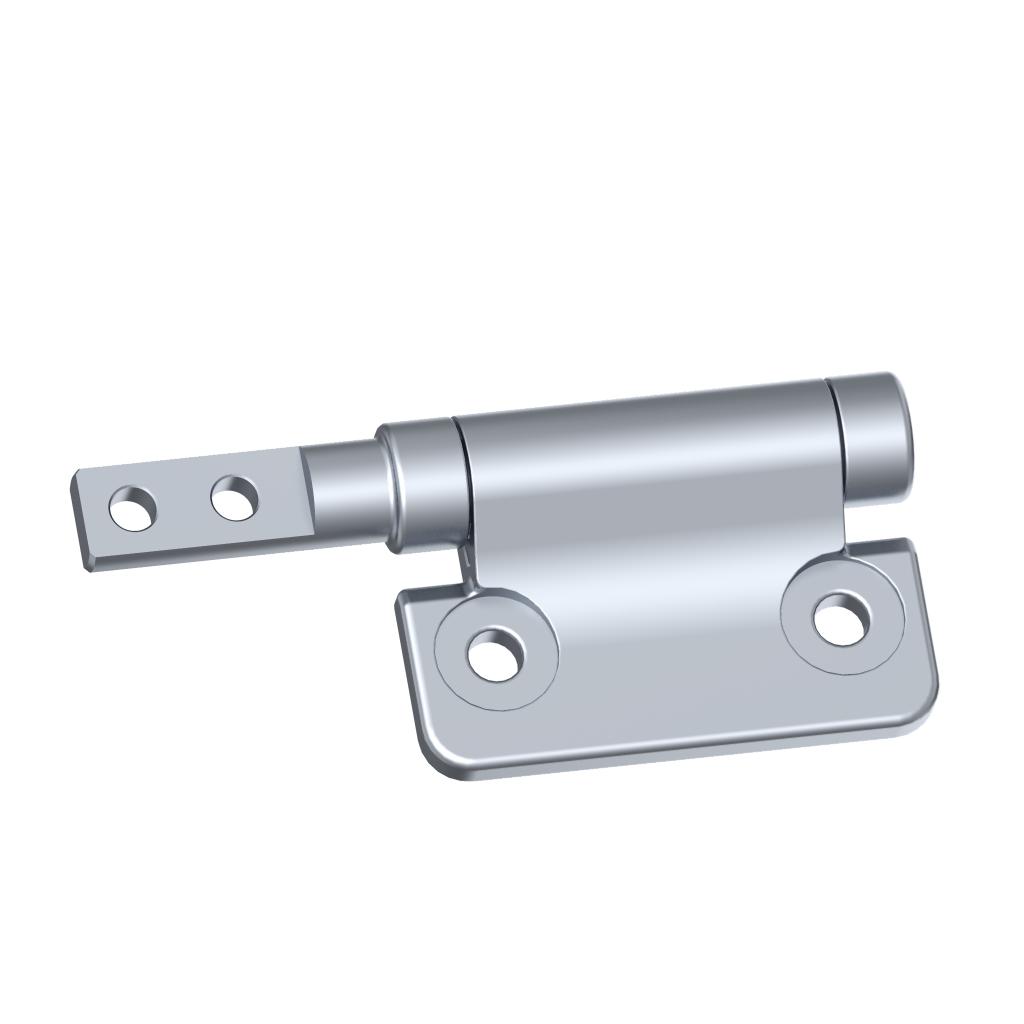

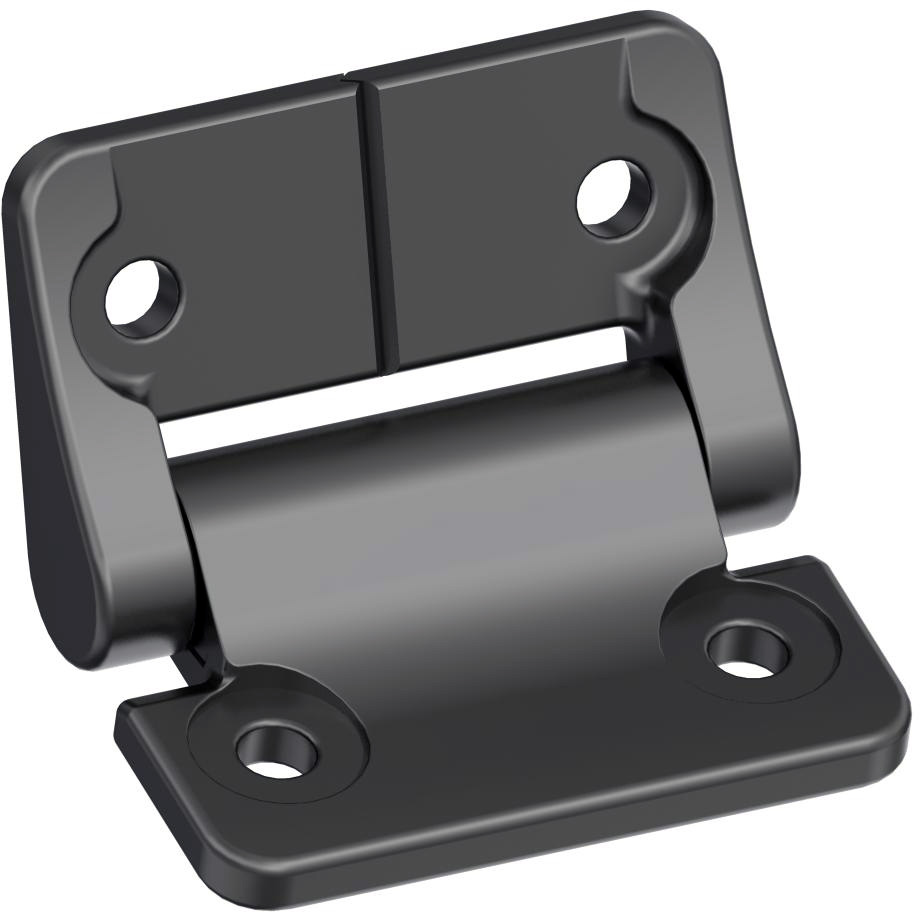

QM12 Series

  • Symmetric torque: 0.0 - 3.9 Nm
    Asymmetric torque: 1.4 - 4.5 Nm
  • Over 25,000 operation cycles
  • 270 degree shaft rotation
This is a qm12 friction hingeThis is a qm12a friction hinge

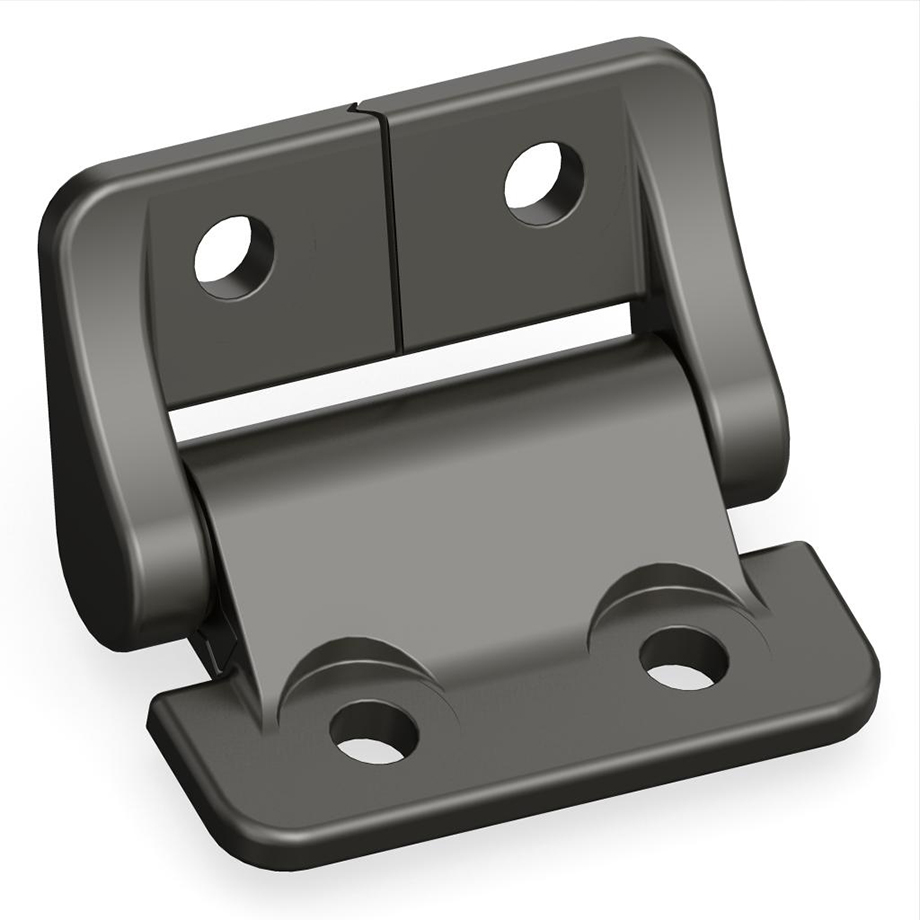

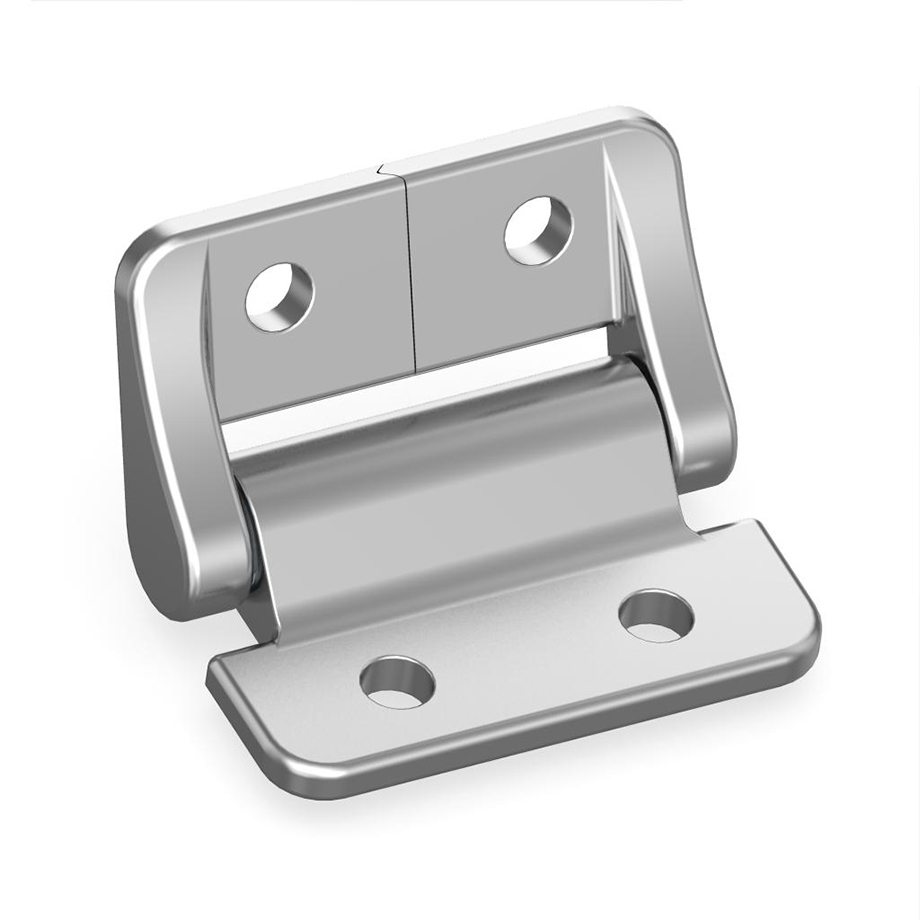

QM10 Series

  • Symmetric torque: 0.0 - 2.7 Nm
    Asymmetric torque: 0.8 - 3.4 Nm
  • Over 25,000 operation cycles
  • 270 degree shaft rotation

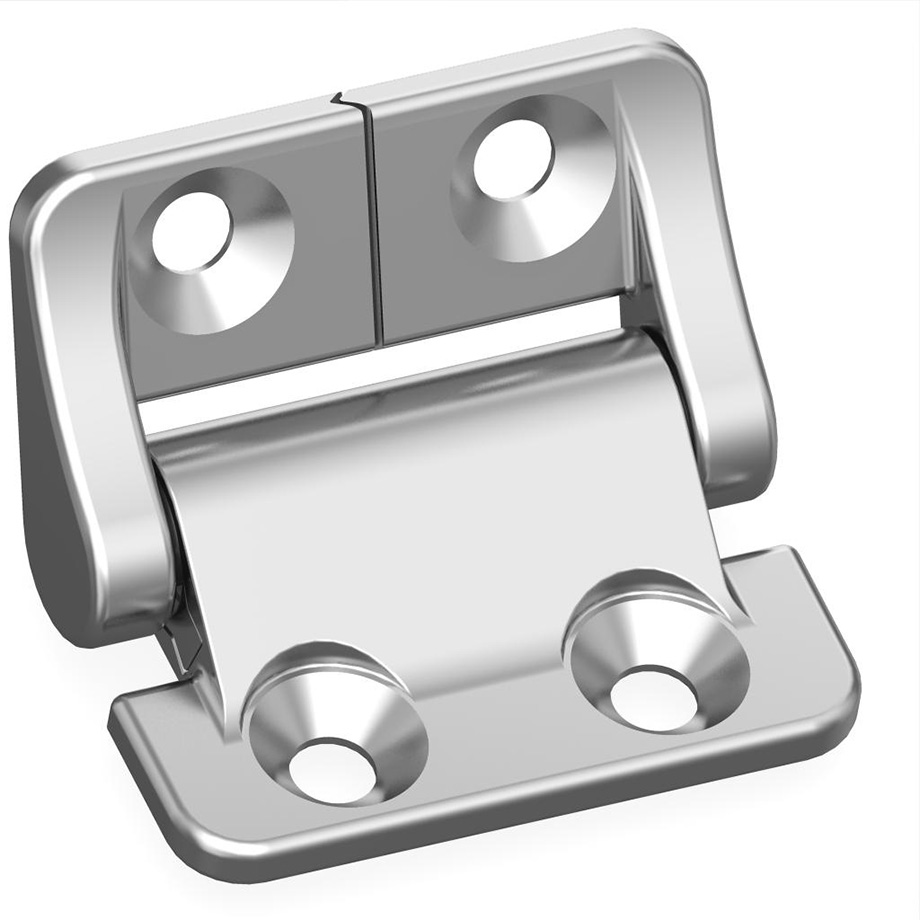

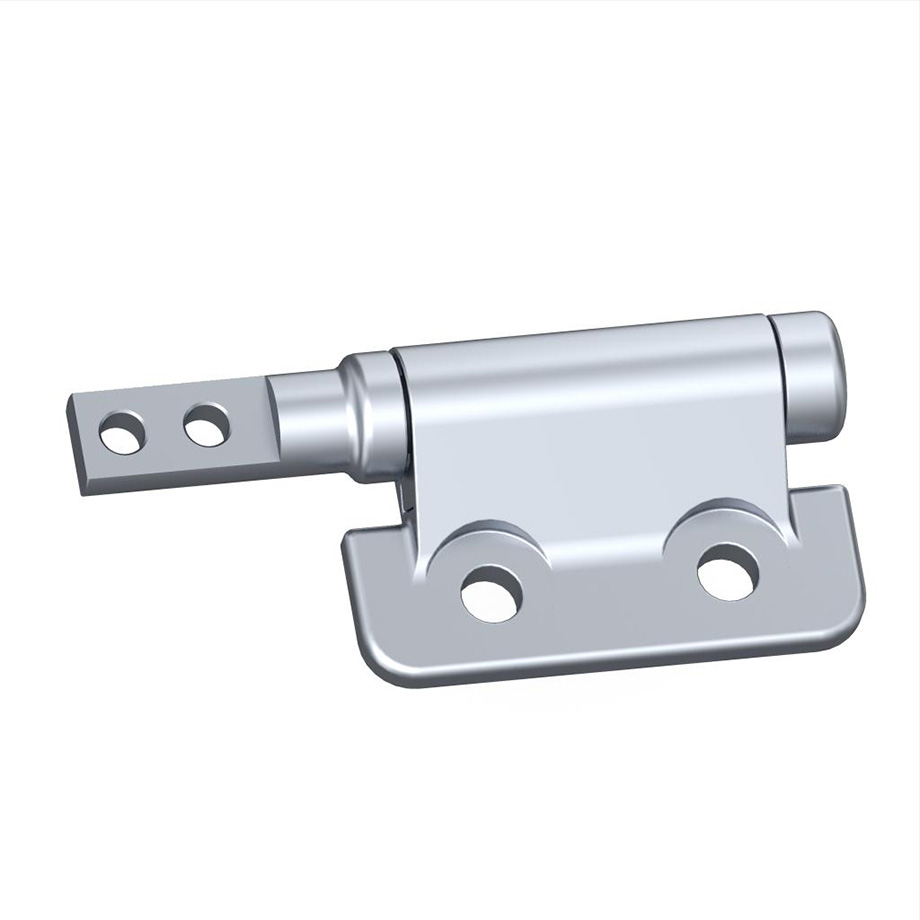

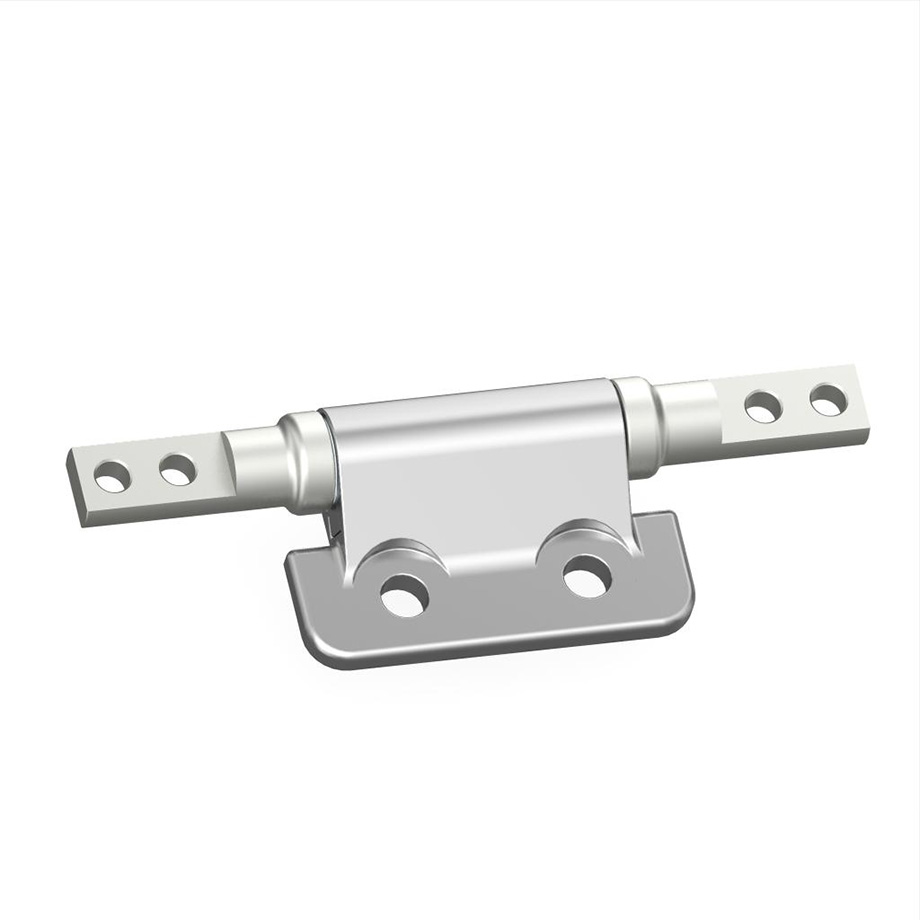

This is a qm10 friction hingeThis is a qm10 countersunk friction hingeThis is a qm10b friction hinge

QM7 Series

  • Symmetric torque: 0.5 - 0.9 Nm
    Asymmetric torque: 0.4 - 1.1 Nm
  • Over 25,000 operation cycles
  • 360 degree shaft rotation

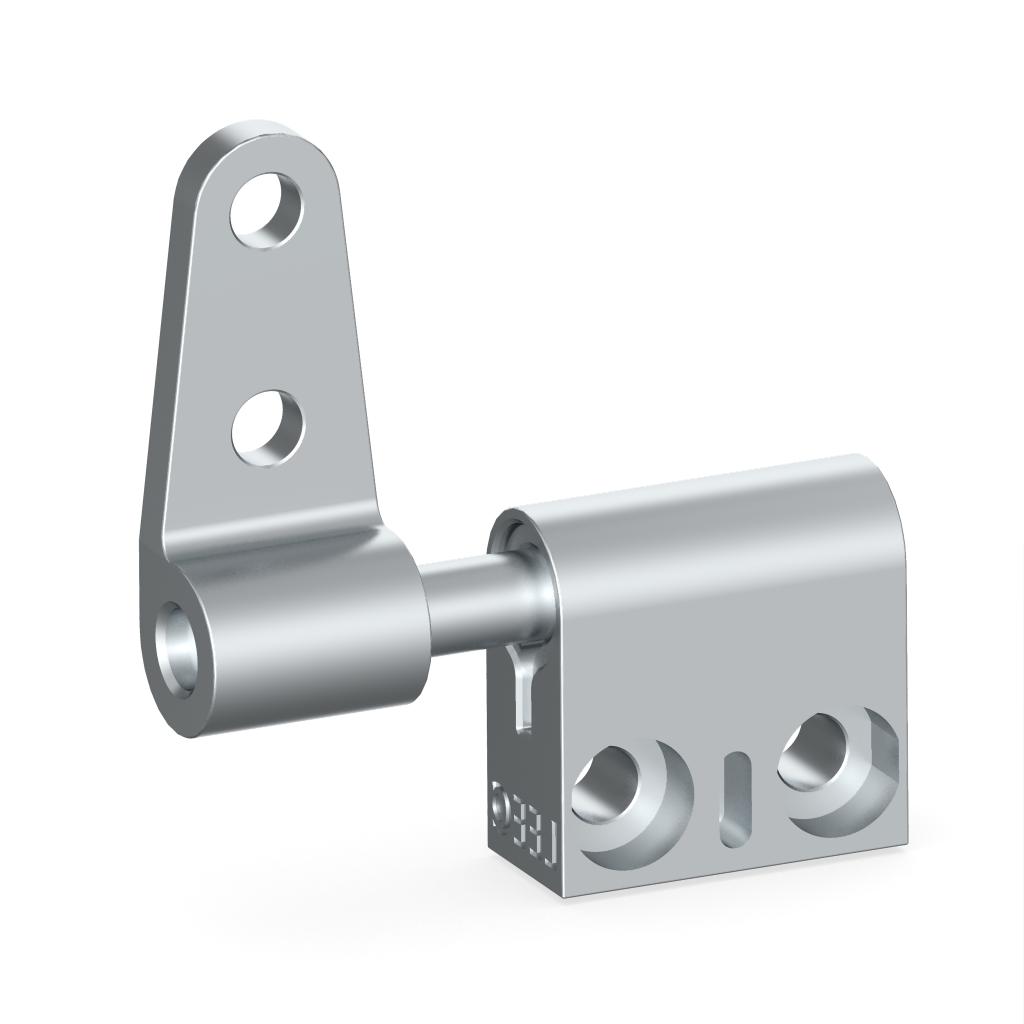

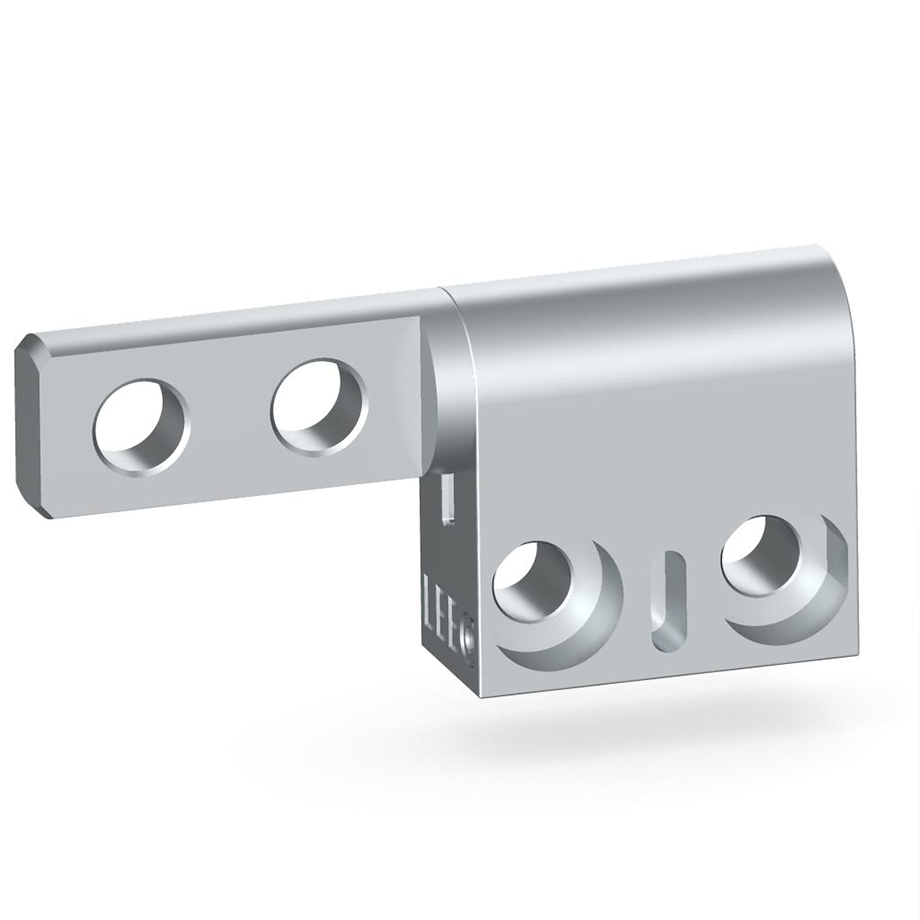

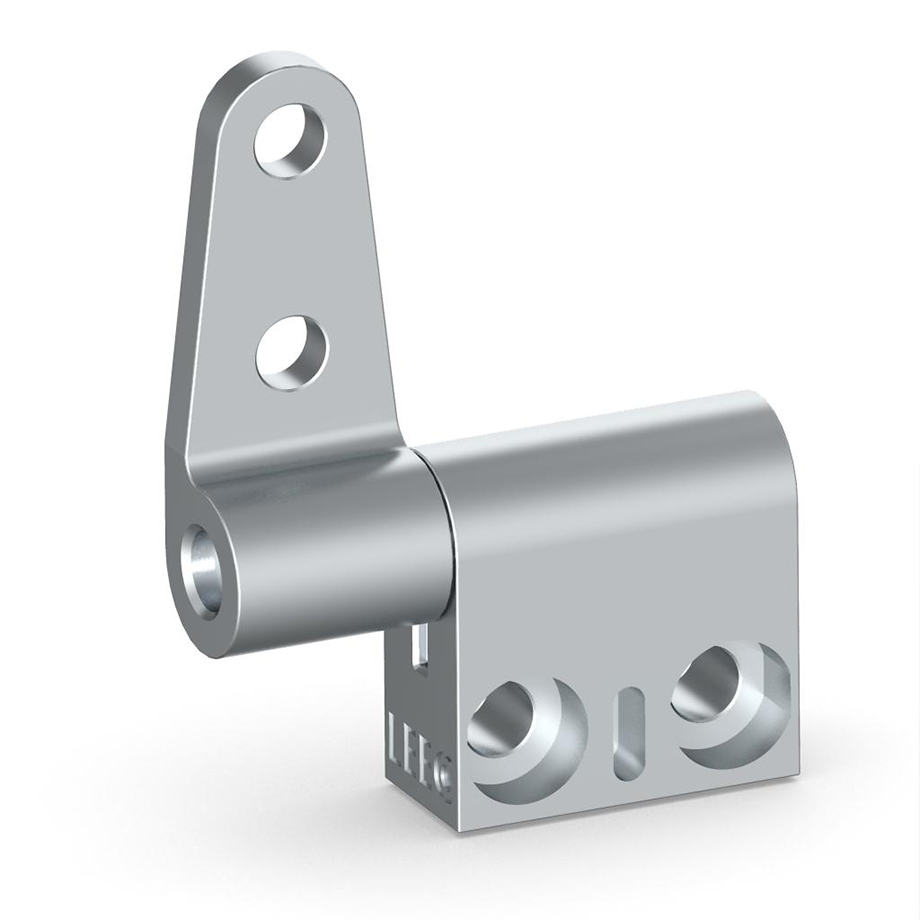

This is QM7A Friction HingeThis is QM7B Friction HingeThis is QM7C Friction Hinge

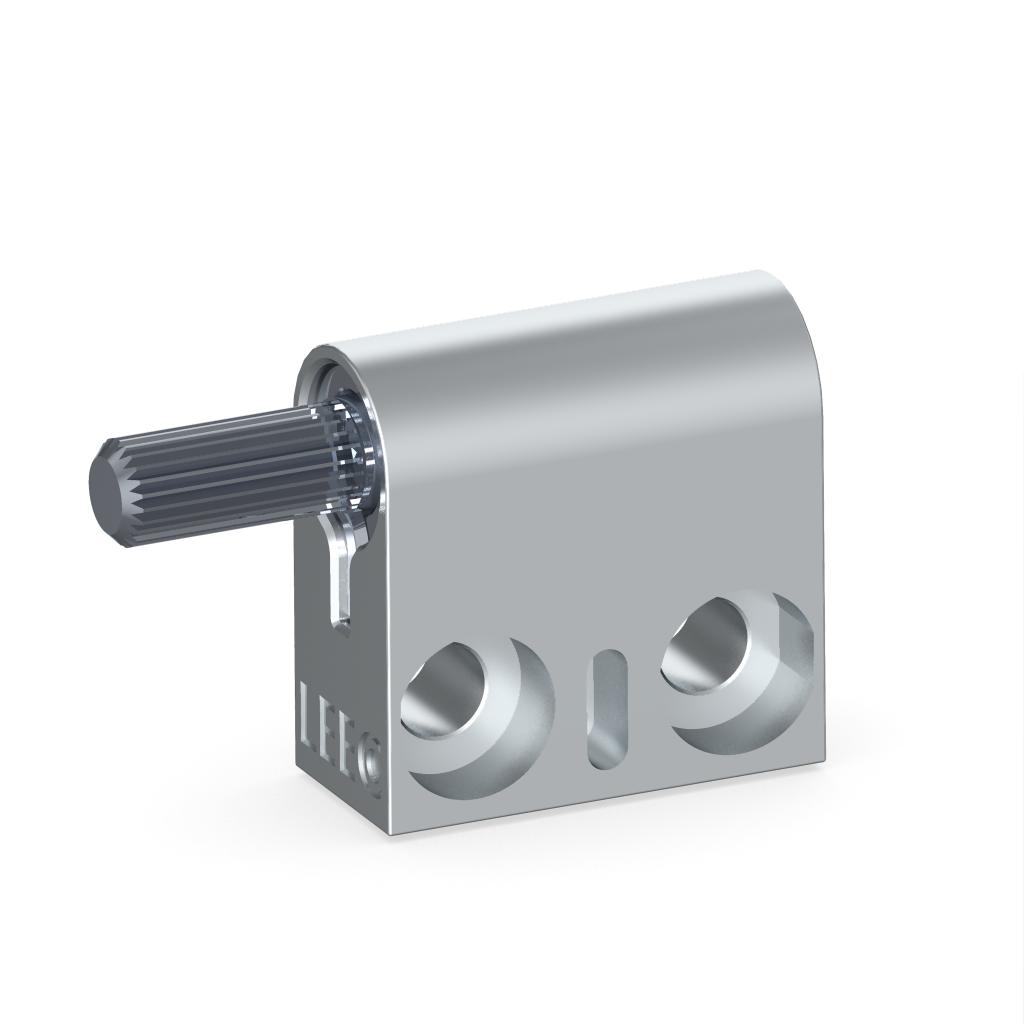

This is qm7d friction hinge

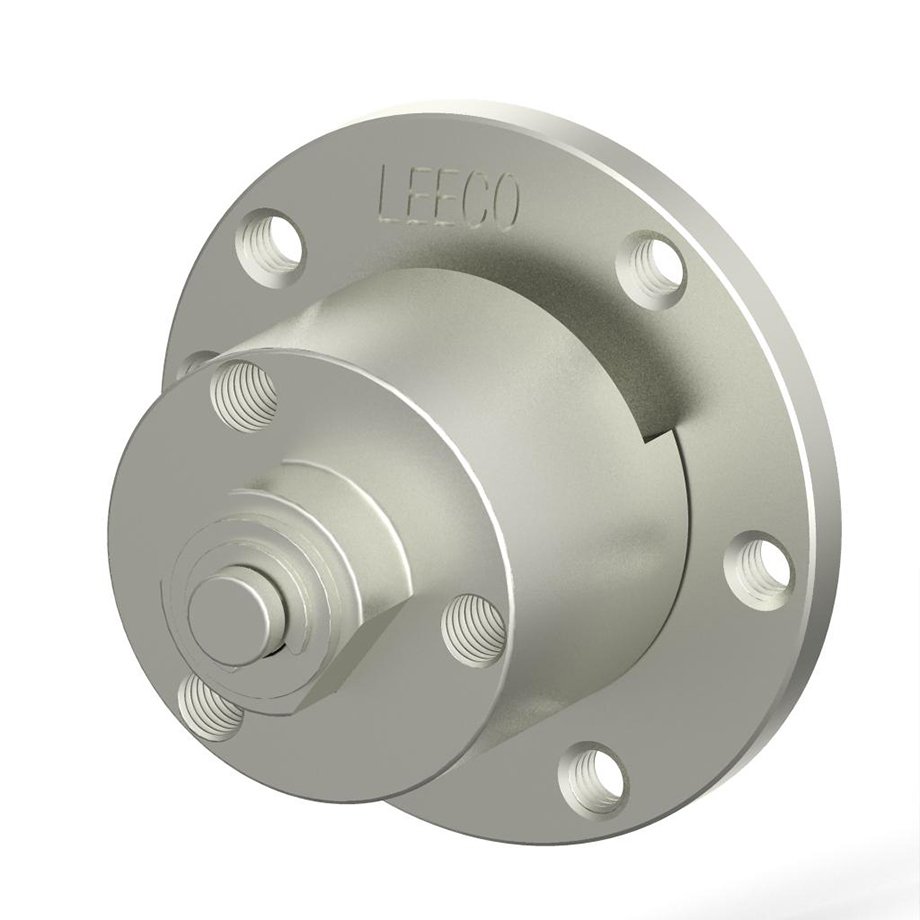

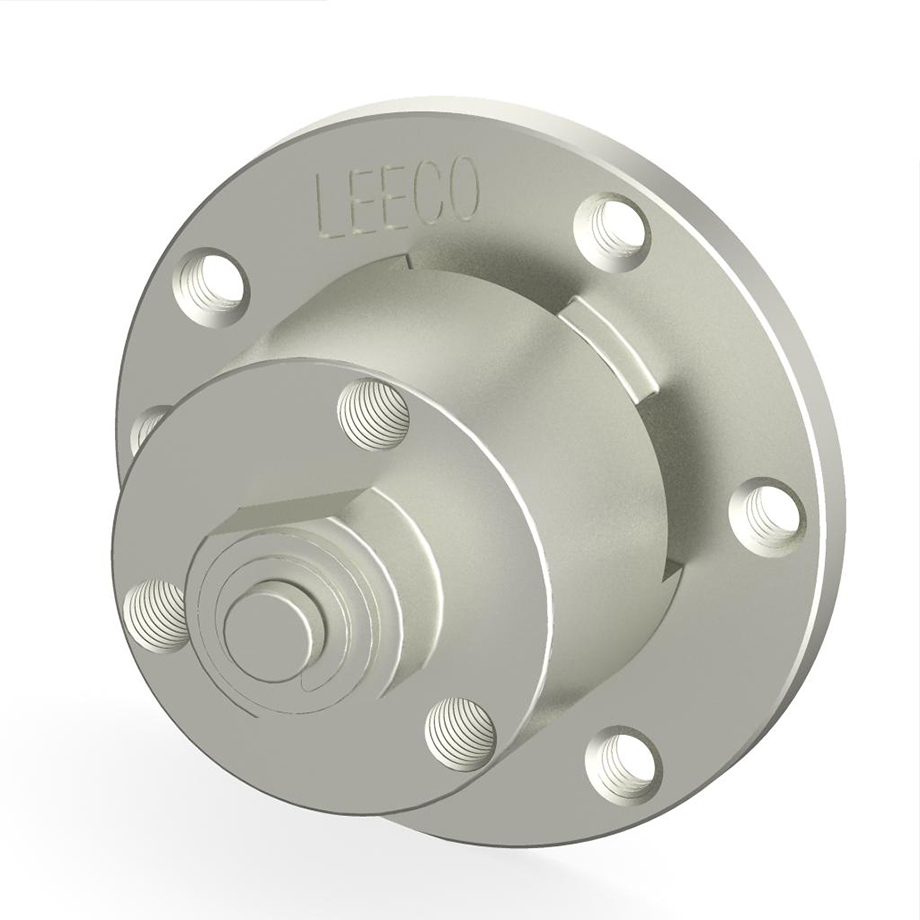

CD20 Series

  • Symmetric torque: 2.5 - 5.0 Nm
  • Over 10,000 operation cycles
  • 90 or 360 degree shaft rotation
This is CD20A Friction HingeThis is CD20B Friction Hinge

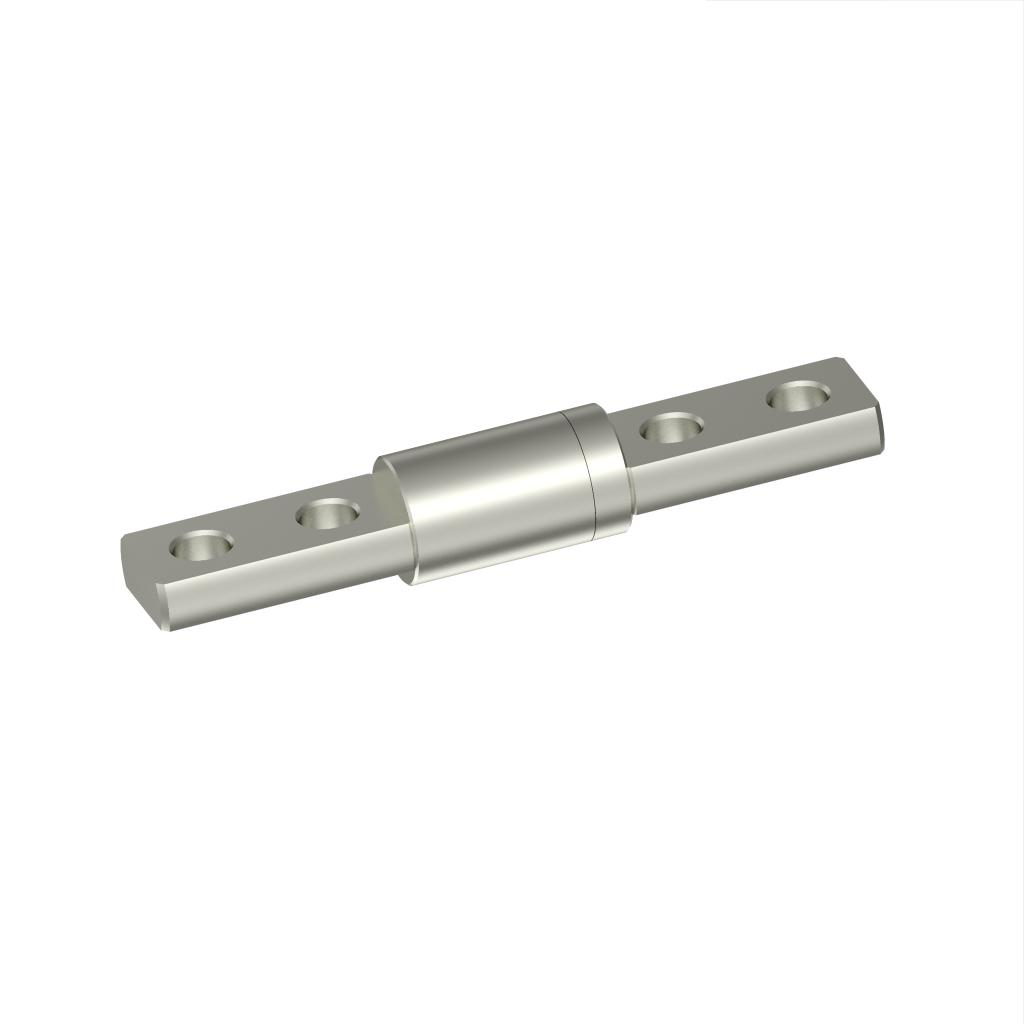

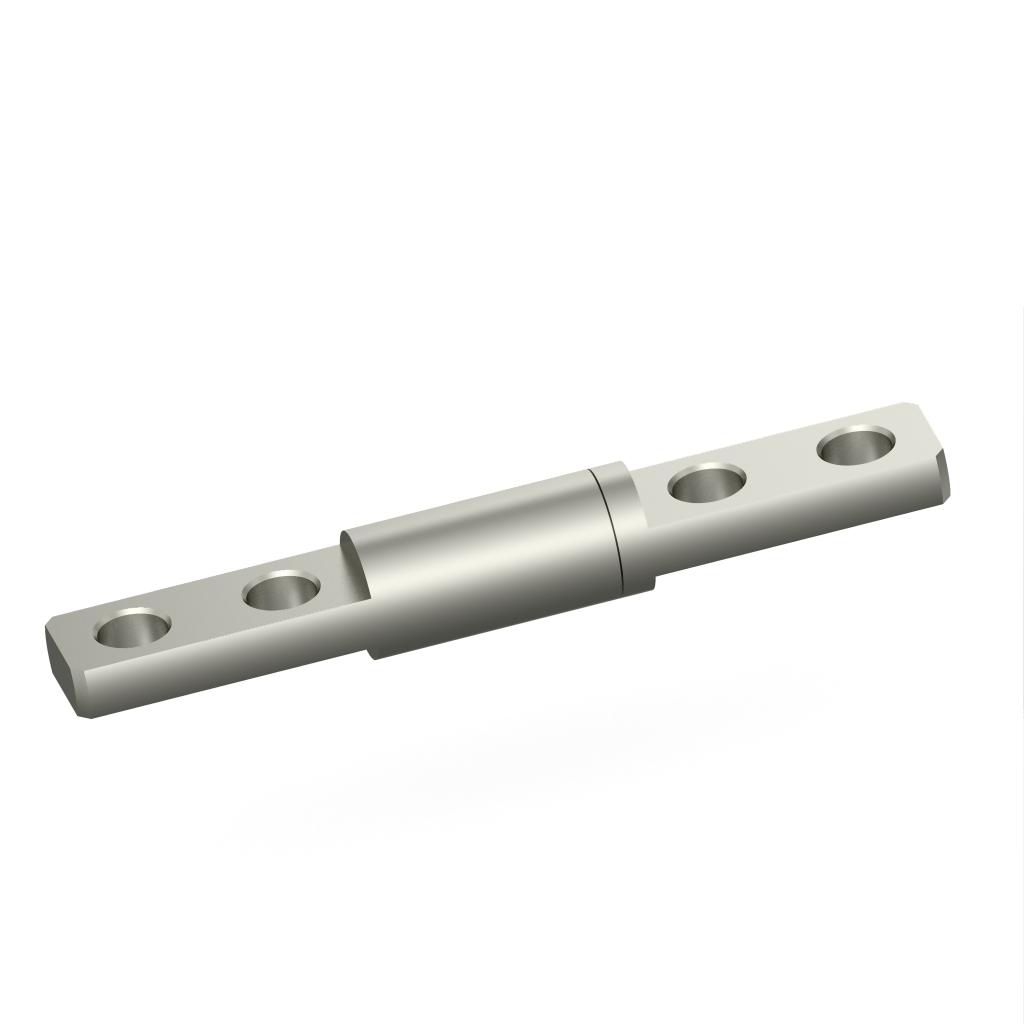

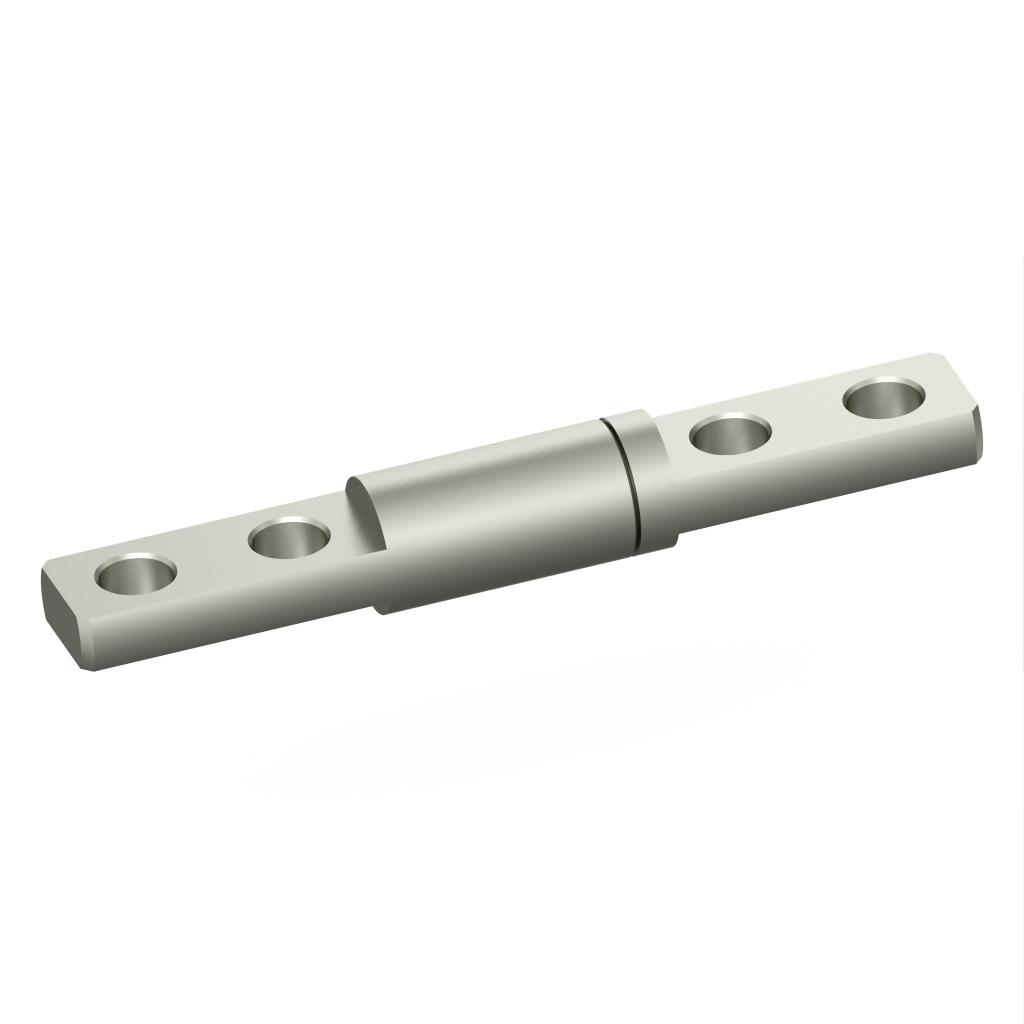

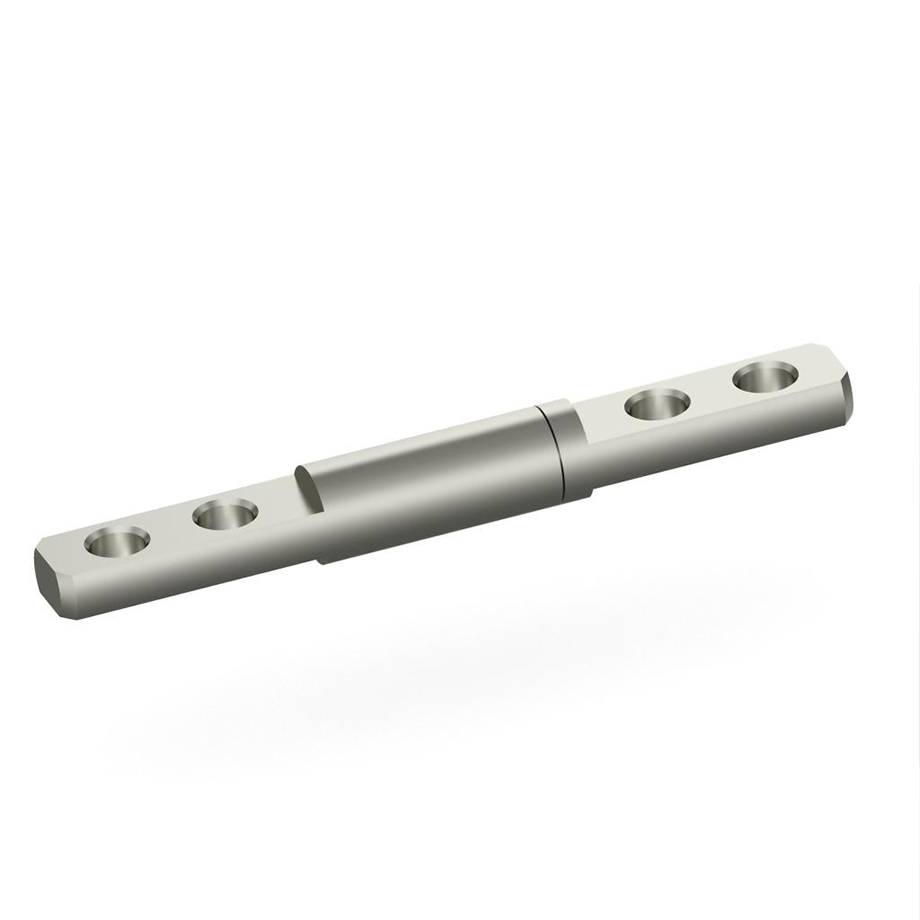

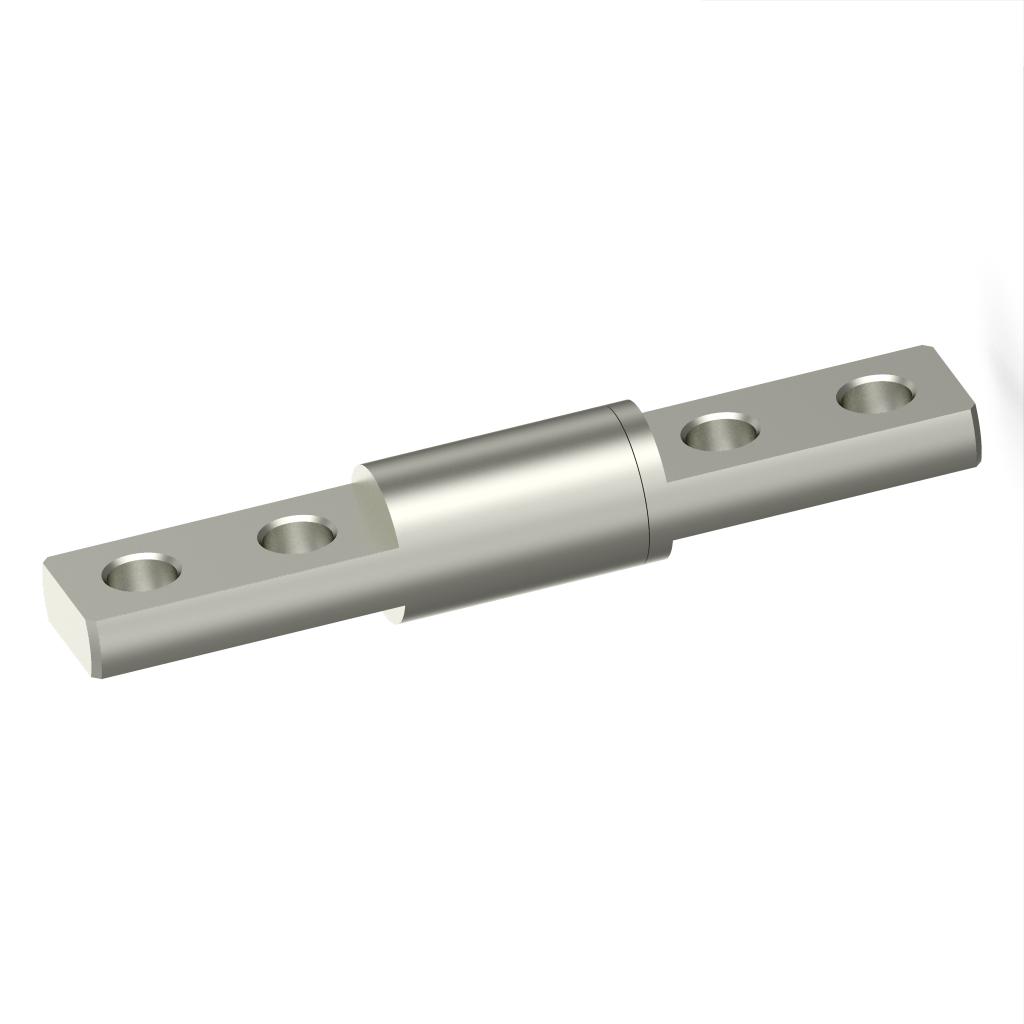

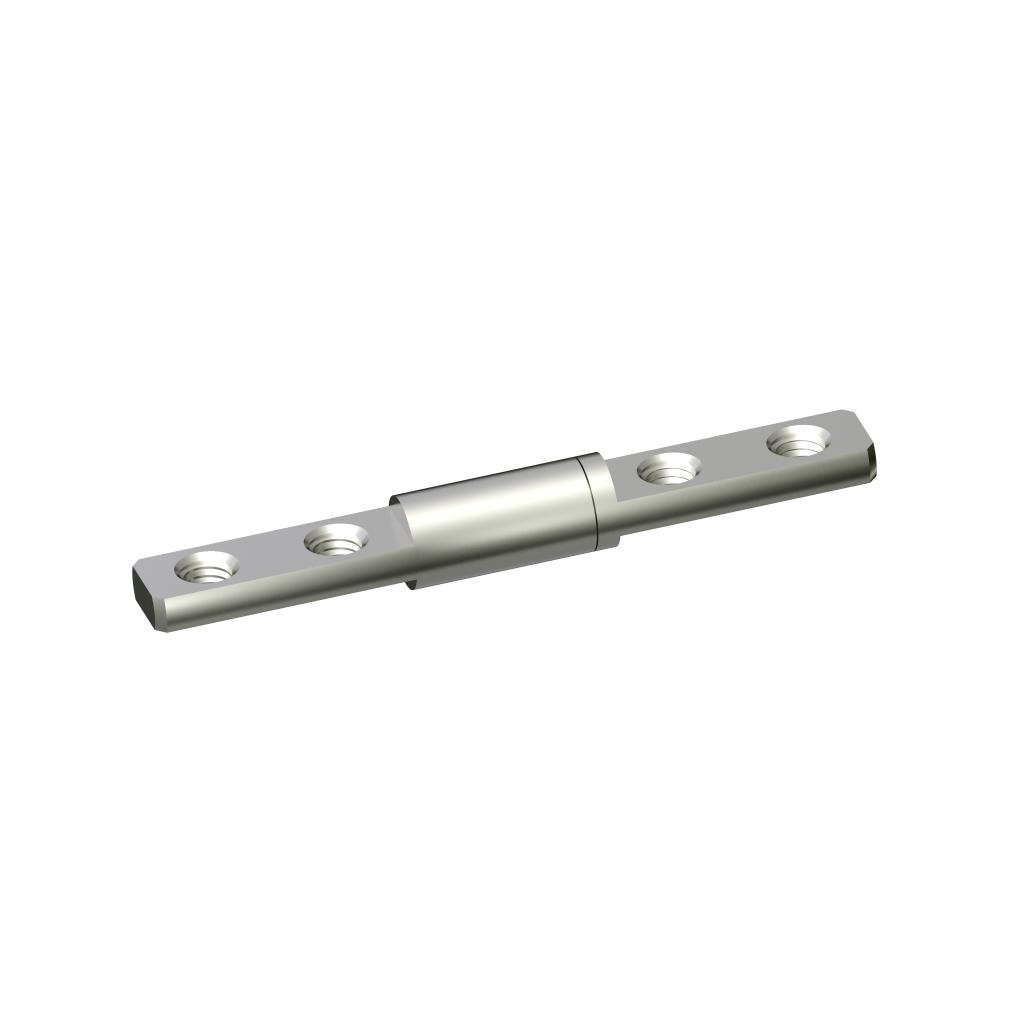

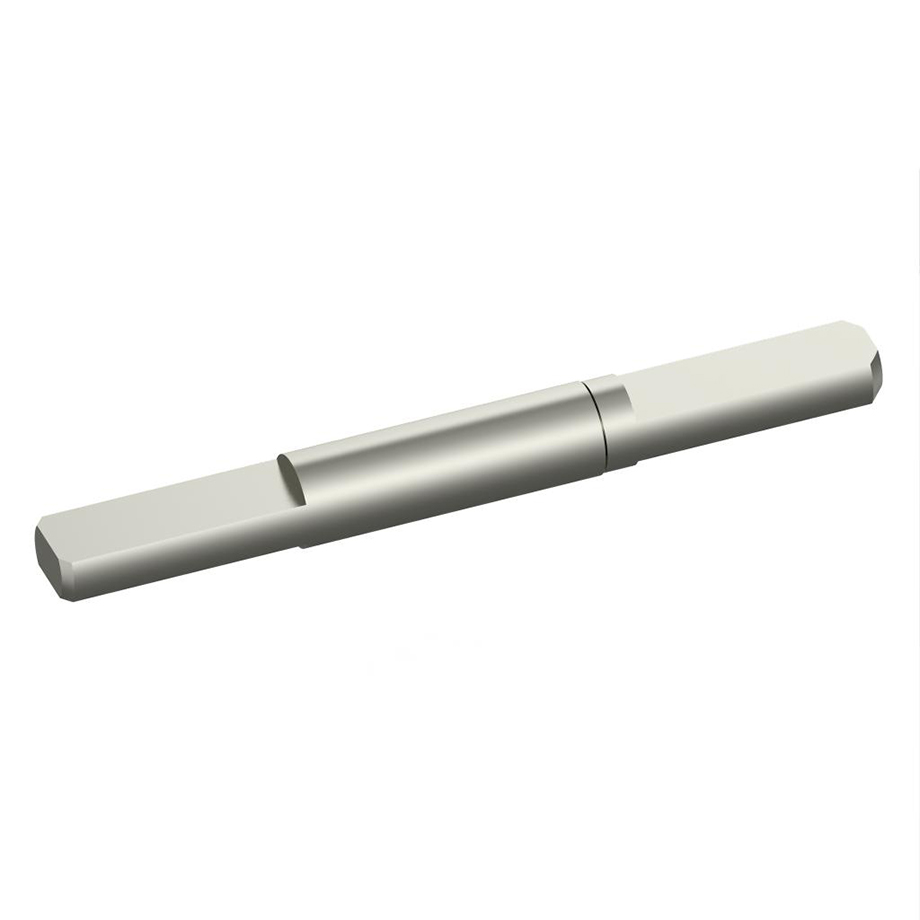

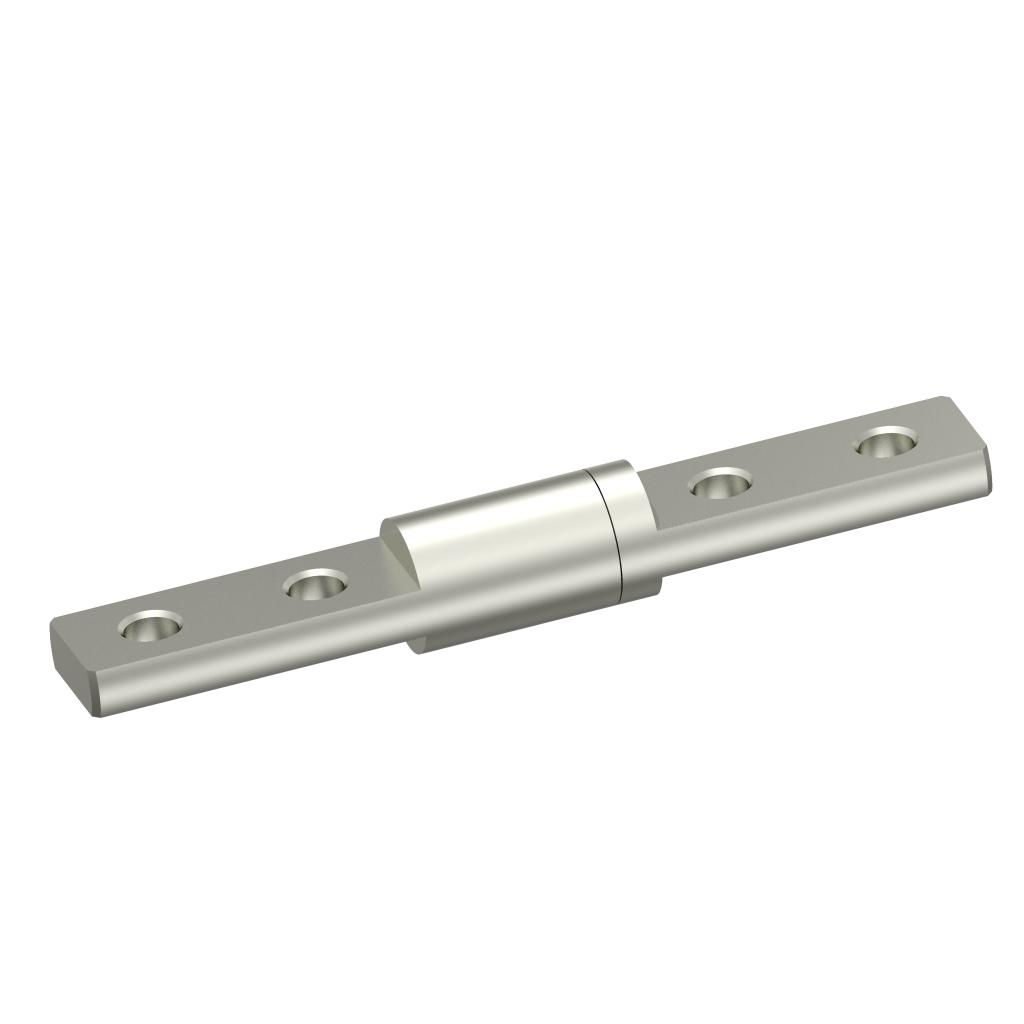

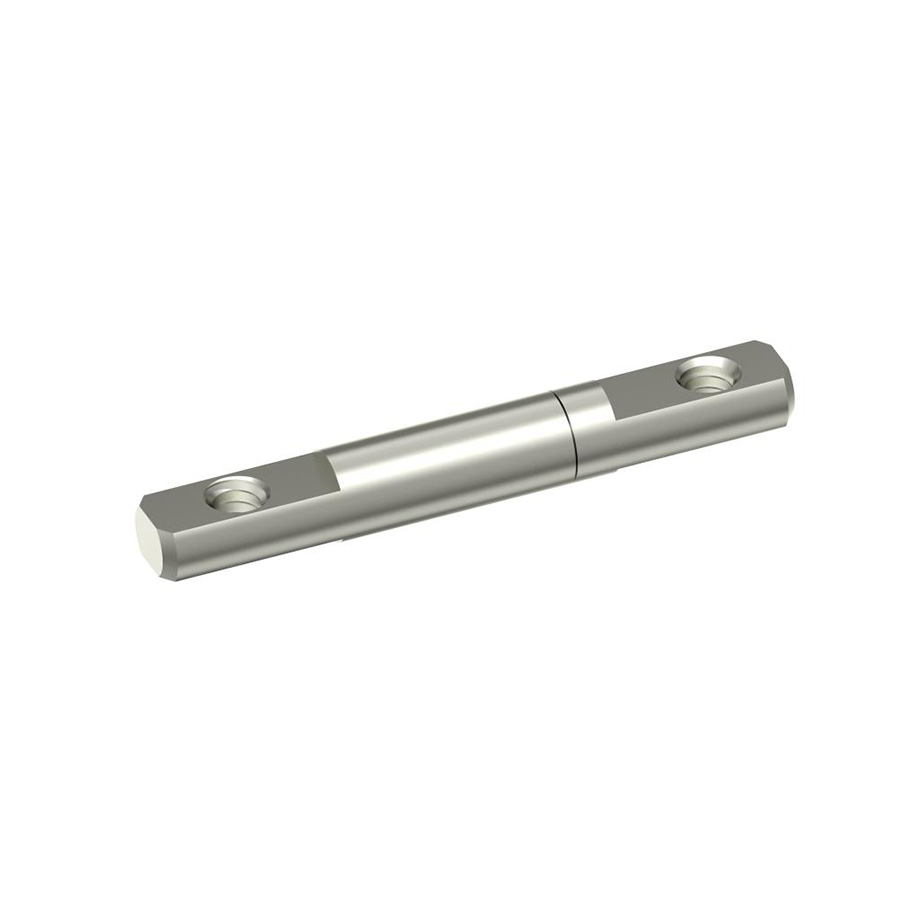

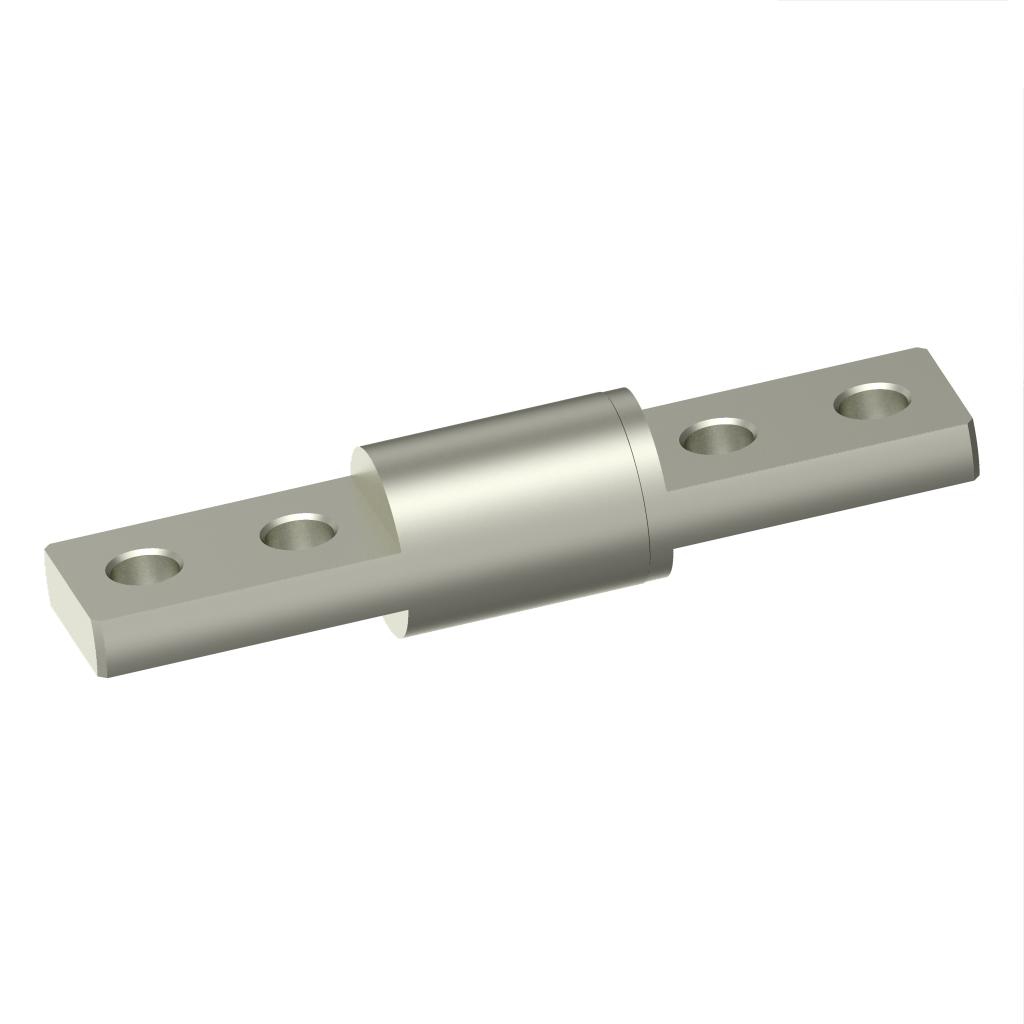

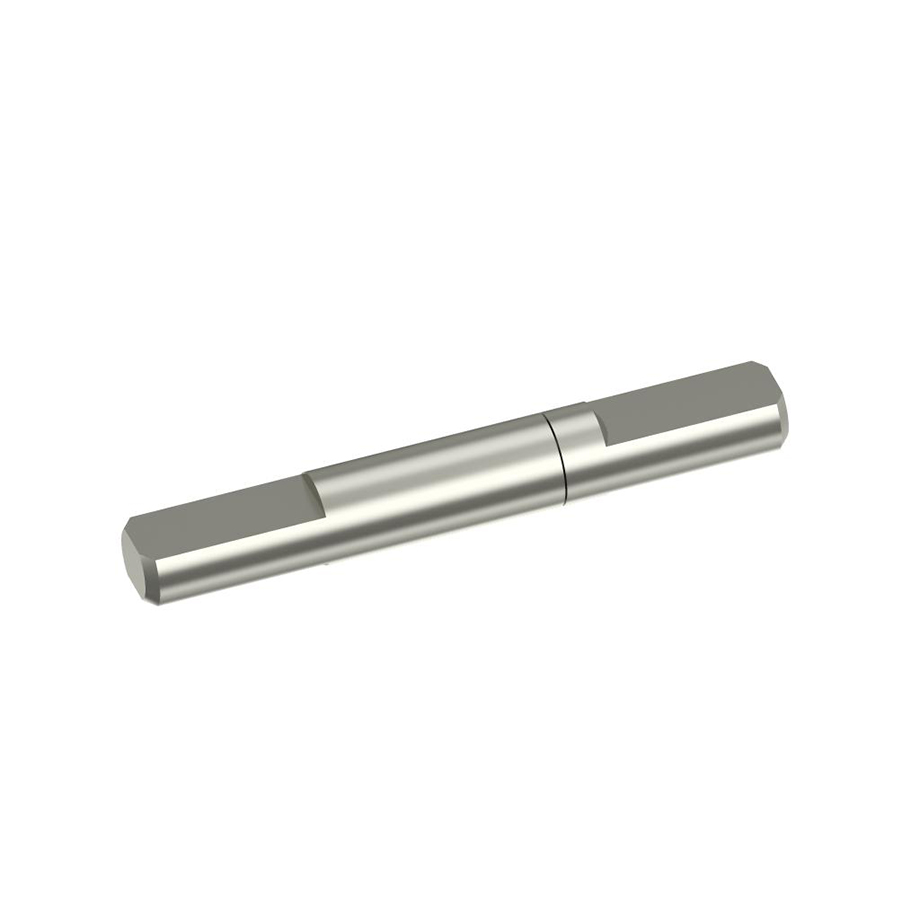

BH Series

  • Symmetric torque: 0.025 - 4.5 Nm
  • Over 10,000 or 25,000 operation cycles
  • 360 degree shaft rotation
This is a bh friction hinge

TS10 Series

  • Symmetric torque: 1.0 - 2.0 Nm
  • Over 25,000 operation cycles
  • 360 degree shaft rotation

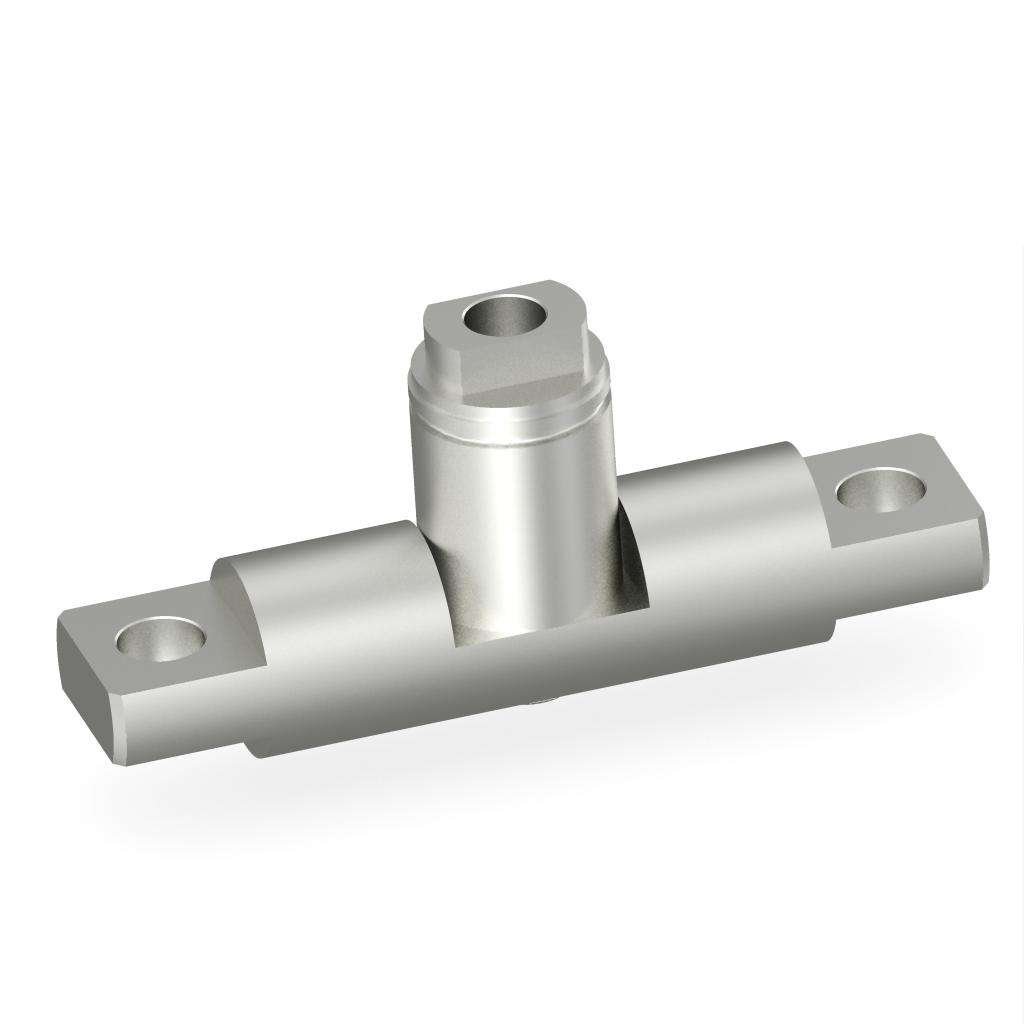

This is TS10 friction hinge

BT7 Series

  • Symmetric torque: 0.4 - 0.9 Nm
  • Over 25,000 operation cycles
  • 360 degree shaft rotation

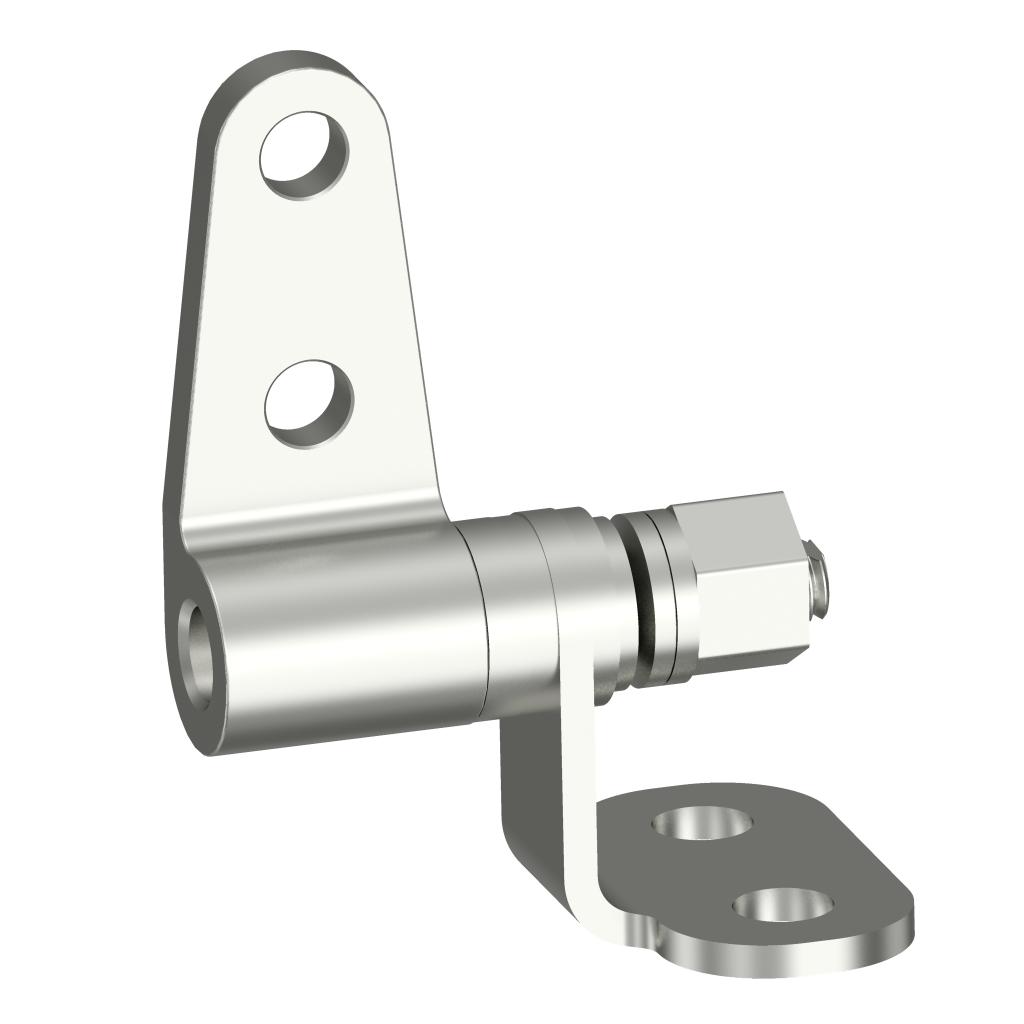

This is BT7A Friction HingeThis is BT7B Friction Hinge

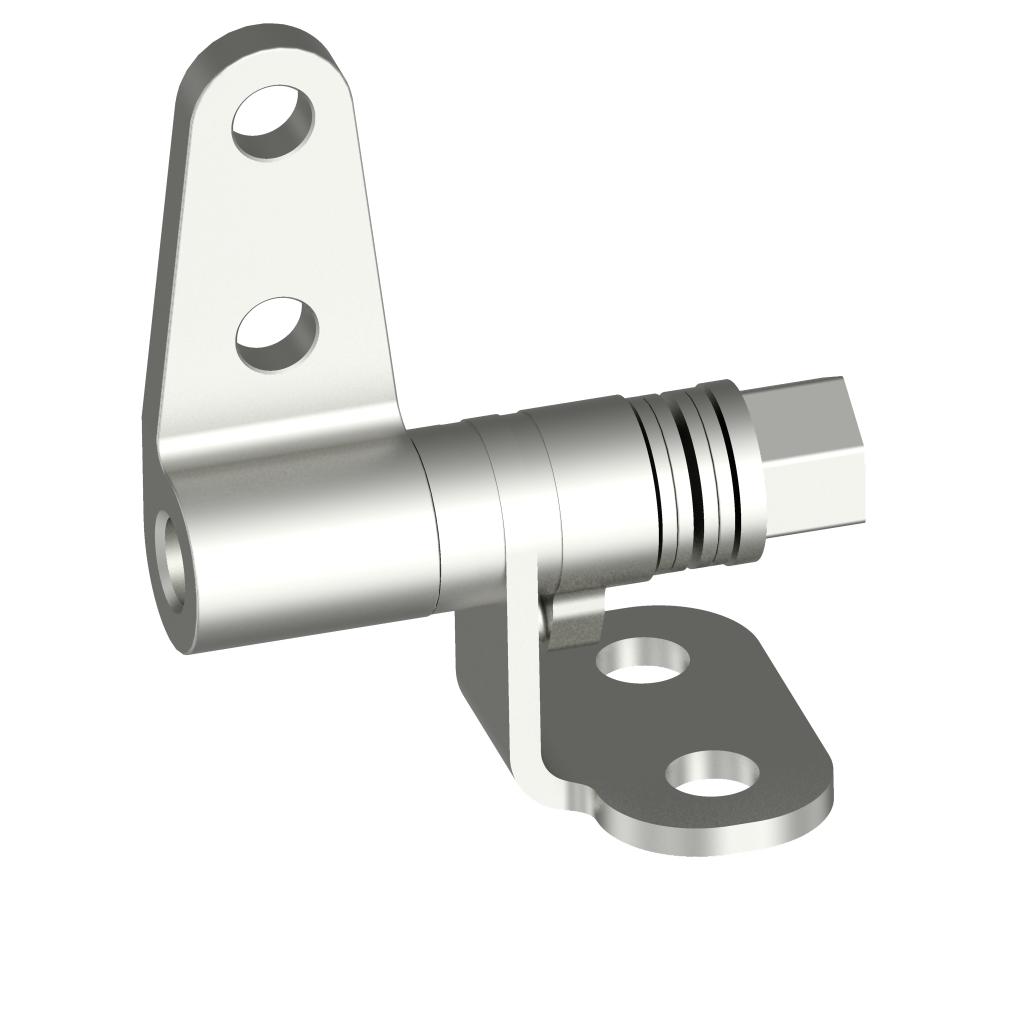

LL7 Series

  • Symmetric torque: 0.4 - 0.9 Nm
  • Over 25,000 operation cycles
  • 270 degree shaft rotation

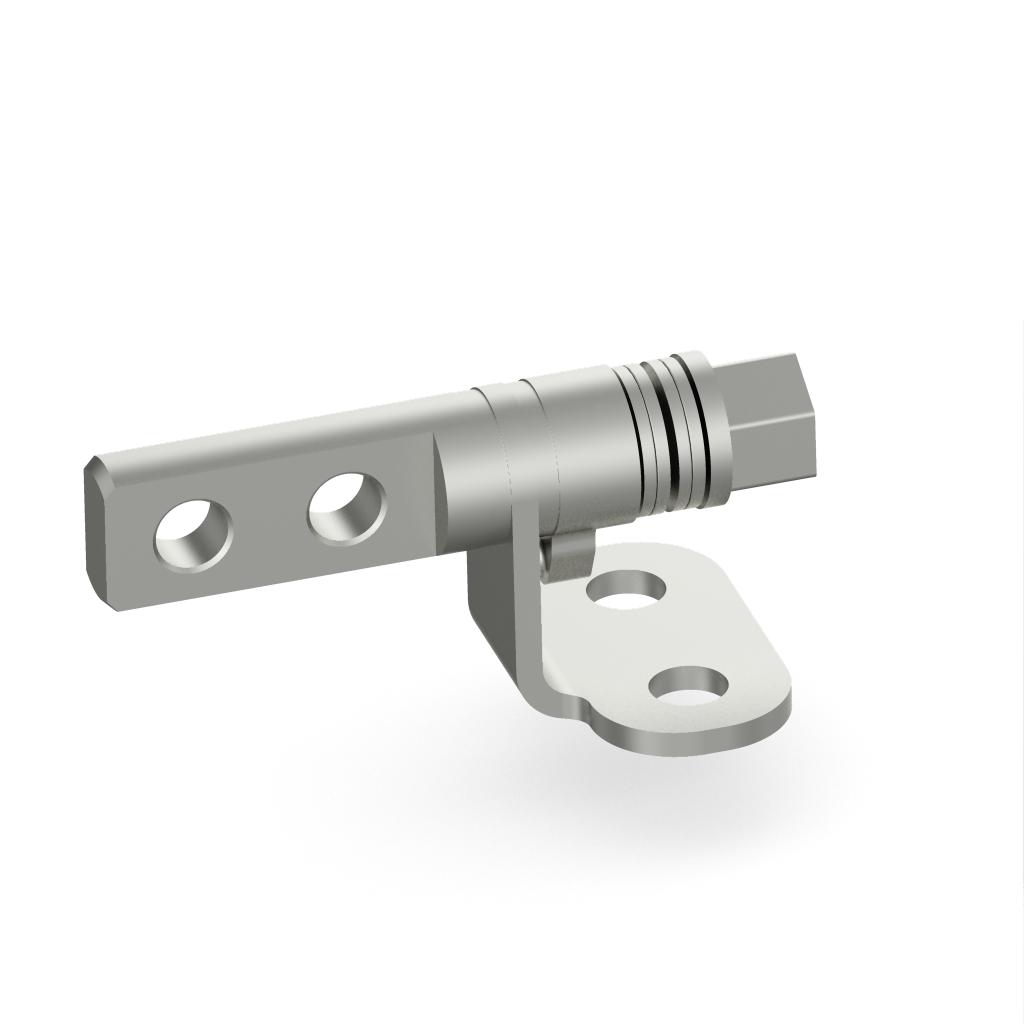

This is LL7A Friction HingeThis is LL7B Friction Hinge

QS10 Series

  • Asymmetric torque: 1.0 - 4.0 Nm
  • Over 25,000 operation cycles
  • 360 degree shaft rotation
This is QS10 Friction Hinge
