Understanding One Way Friction Hinge
A one-way friction hinge (also known as a one-way torque hinge) is a type of hinge that provides resistance to motion in one direction but allows free or low-resistance movement in the other. This ensures that a lid, door, or panel can move easily in one direction (e.g., opening) but requires more force or is entirely restricted when moving in the opposite direction (e.g., closing). When the hinge rotates in the "free or open" direction, the clutch or friction elements release, allowing smooth motion with minimal torque. In the opposite direction, these components engage, creating resistance that either slows the motion or prevents it entirely, depending on the design.
Key Features

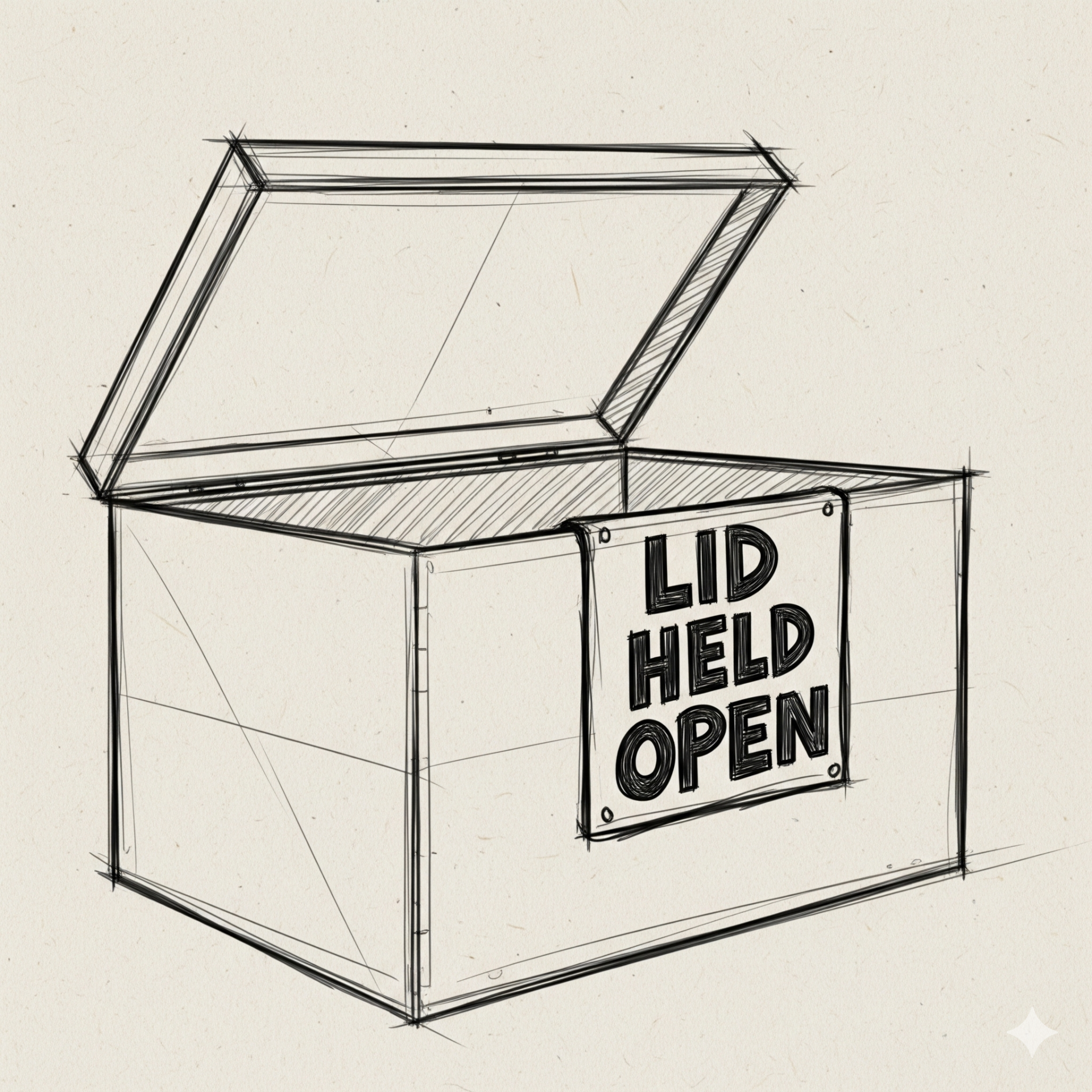

Resists motion in one direction: It provides torque (frictional resistance) to hold or control movement when rotated in one direction. This is useful for holding a lid, panel, or screen in place.

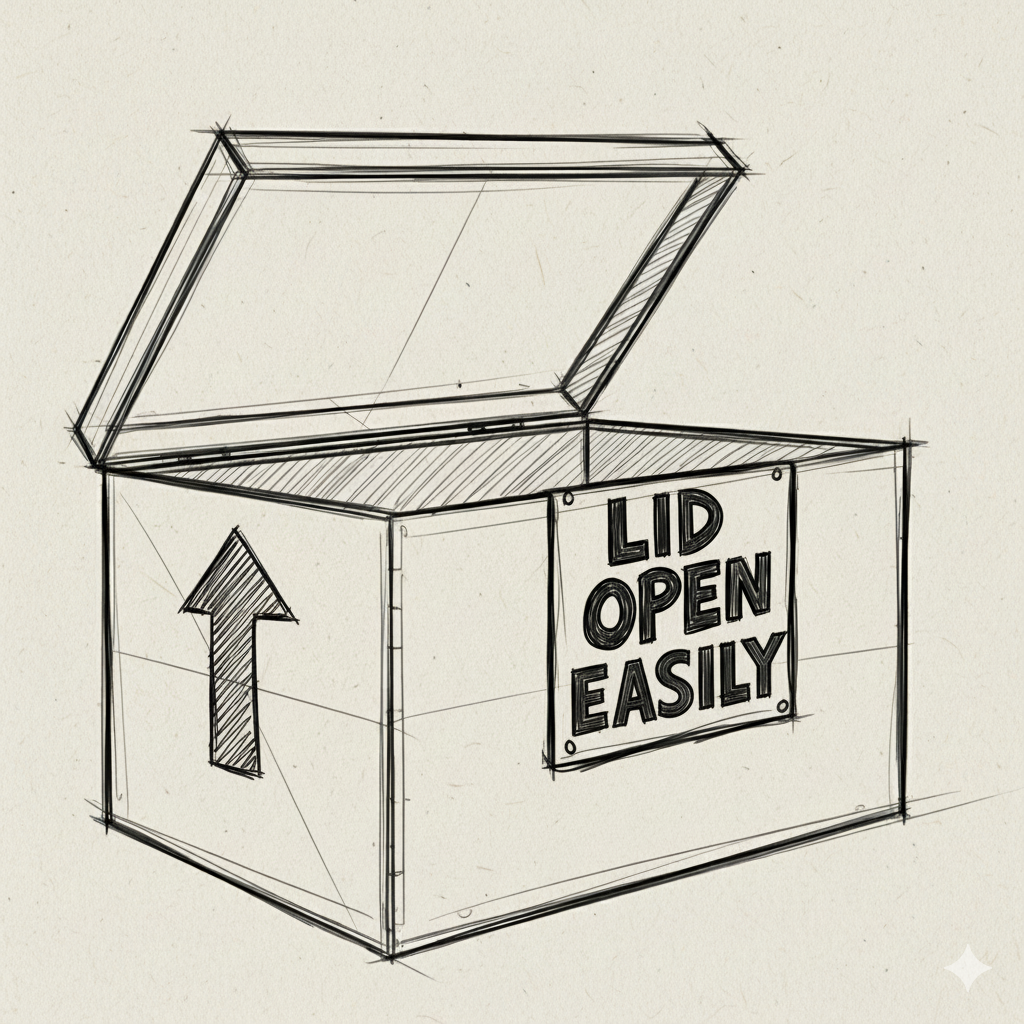

Allows free or low-resistance motion in the opposite direction: It rotates easily when turned in the other direction, making it convenient to reset or close without resistance.
Common Applications
Appliances – like lids that open easily, hold position when closing.
Automotive parts – for glove boxes or center consoles. Swing open smoothly but close with resistance to avoid slamming.
Medical devices – to hold equipment in position safely. Found in adjustable hospital beds or monitor mounts, enabling precise positioning with stability.
Cabinet doors: A door might be designed to open easily but then resist slamming shut.
Advantages and Disadvantages
Advantages
Positional stability: It holds a component firmly in place without the need for additional locking mechanisms.
Compact design: The resistance is built directly into the hinge itself, keeping the overall assembly clean and streamlined.
Durability: Many of these hinges are designed to withstand thousands of cycles without losing their friction.
Enhanced User Experience: Provides intuitive operation for devices requiring adjustable positioning, such as screens or panels.
Customization: Torque levels can be tailored to specific loads, from lightweight screens to heavy machinery arms.
Disadvantages
Directional limitation: Its primary benefit is also its main drawback; it can't offer resistance in both directions simultaneously.
Cost: Due to their more complex internal mechanisms, they are often more expensive than standard hinges.
Fixed resistance: The friction force is typically set during manufacturing and can't be easily adjusted by the end-user.
Design Considerations
Adding a one-way friction hinge into your design requires careful attention to several factors:
Material Selection: Stainless steel or aluminum for the structural components, offering strength and corrosion resistance. Zinc alloys are used for cost-effective die-casting.
Torque Requirements: The hinge must be tuned to provide the right amount of resistance in the restricted direction while ensuring ease of movement in the free direction. This balance is critical for user experience and functionality.
Size and Weight: Compact designs are often necessary for applications like portable electronics, where space and weight are at a premium.
Durability: The hinge must withstand repeated cycles without significant wear, especially in high-use applications like laptop screens or vehicle components.
Made by Leeco Technologies Corporation Engineering team.
