Let's Be Honest About What This Comparison Is Actually About

Most articles comparing friction hinges to traditional hinges treat it like an obvious answer — of course the friction hinge is better. I've been on both sides of that argument. Eleven years at Southco selling friction hinges, then since 2007 at LEECO making them. At both companies, we sometimes oversold the technology. I'd rather not do that here.

A traditional hinge is one of the most reliable mechanical components ever made. Two leaves, a pin, a rotation axis. Nothing to go wrong. If your application needs a door that opens fully and stays open, or closes fully and latches — a traditional hinge will outlast almost anything you pair it with, and cost a fraction of what a torque hinge does.

The friction hinge exists to solve one specific problem: holding a panel, lid, or screen at a position the user chooses, without extra hardware. If that's not your problem, you probably don't need one.

What Actually Bites You in Production

I get RFQs from engineers who've already decided they want a friction hinge. Sometimes that's right. Sometimes they spec'd one because a product manager saw it on a competitor's laptop and assumed it was standard. Those conversations are always a bit awkward — especially when the application clearly doesn't need positional control.

The functional difference between the two hinge types is real. But the engineering difference — the part that causes problems — is about torque consistency over time, not the mechanism itself.

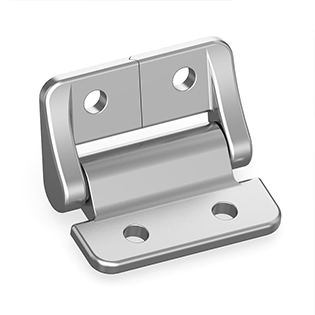

What's happening inside

The resistance comes from internal friction interfaces engineered to a precise preload. When the hinge rotates, those interfaces generate calibrated torque that counteracts the weight of whatever's attached. Get it right, the panel holds. Too low, the lid creeps downward over six months. Too high, users force it open and crack the mounting brackets.

Danny's field test: Here's something I don't see written down anywhere, but it's the first thing I check when I'm evaluating a hinge sample — rotate it slowly by hand and pay attention to whether it feels smooth throughout, or whether there's a slight jerk at the start of movement. That jerk tells you the gap between the static friction coefficient and the dynamic friction coefficient is too wide. When static and dynamic friction values are close, the transition is seamless. When they're far apart, you get that stick-slip sensation — which means uneven torque delivery and unpredictable wear behavior over thousands of cycles. I use this as a quick field test before I even look at the spec sheet.

My first patent — US 9,206,633, granted in 2015 — covers a torque shrapnel mechanism that addresses exactly this: how to generate consistent friction torque through the interaction between a passive protruding portion and a hinge's protruding sector. The engineering problem that led to that patent was a customer whose panels weren't holding consistently. The mechanism was sound; the torque delivery wasn't repeatable enough.

Traditional hinges don't have this problem. Free rotation means no torque to tune, no decay curve to worry about.

The thing we don't say loudly enough

Torque decay is real, and neither LEECO nor Southco talks about it enough in our marketing materials. Every friction hinge loses holding force over time as internal surfaces wear. The question is how much, how fast.

I've seen samples — including some of our own earlier designs — drop somewhere between 35–42% of initial torque within 15,000 cycles. The range matters: it wasn't consistent batch to batch, and it took us a frustrating few months to isolate whether the variable was material, surface treatment, or assembly preload. Turned out to be a combination of all three, weighted differently depending on operating temperature.

What that looks like in practice: a laptop screen that held at 110° on day one starts drifting by month eight. The hinge looks fine physically. The warranty claim takes weeks to diagnose.

Rated Cycle Life

25,000

cycles (production data)

Torque Tolerance

±20%

production standard

That might sound modest compared to the numbers some competitors put in their datasheets — and I'll address that directly in the FAQ below — but it's a number we can stand behind with production data, not just lab samples. It came partly from a hard conversation with a customer in Taoyuan whose medical cart monitors were failing in the field. Their engineering team spent three months finding the root cause before they called us. We spent another two months on the fix. I don't want to have that conversation again.

Key differences between friction hinges and traditional hinges
Feature Friction Hinge Traditional Hinge
Holds any angle Yes No
Extra hardware needed No Often
Torque management Critical N/A
Main failure mode Torque decay Pin / leaf wear
Unit cost Higher Lower

What I've Seen Work — and Fail — Across Industries

Consumer electronics

Laptop hinges are where friction hinge engineering matured as a discipline. The requirement sounds simple — hold the screen, allow one-handed opening — but the tactile bar is brutal. Consumers don't know what torque is, but they immediately register if a screen feels "cheap." That perception lives almost entirely in the hinge.

I've had torque specs go through eleven revision rounds on a single device program. Not because the engineering was unclear — because the product team kept adjusting for feel. "A little stiffer." "More fluid on the way down." That's not an engineering problem. It's an ergonomics problem that happens to live in a mechanical spec. Traditional hinges can't participate in that conversation.

Medical

The medical engineers I work with ask different questions. Not about feel. They ask: What happens to torque after 500 autoclave cycles? What does isopropanol exposure three times a day do to the friction interface over two years?

Those questions took years to answer properly. Surface treatments that perform well in standard cycle testing can behave completely differently after repeated chemical exposure — and not always predictably. We still don't have a clean model for every chemistry combination. What we do now is run application-specific conditioning tests before finalizing specs for medical customers. We didn't do that routinely fifteen years ago.

If you're designing for medical, ask your supplier what their chemical resistance test protocol looks like. If they don't have one, that's your answer.

Automotive

Getting LEECO into the North American automotive supply chain required completing IATF 16949 qualification — a multi-year process that changed how we think about traceability and process control across our entire operation. Not just for automotive parts; the discipline carries across everything we make.

A friction hinge spec'd at room temperature will behave differently at -20°C and at 85°C. I've seen automotive customers pass all room-temperature validation and then get field complaints from Scandinavia in January — opening force up somewhere around 28% in cold conditions, enough for users to notice and flag it.

Test at temperature extremes, not just at 23°C. You'd be surprised how many suppliers don't run this as standard, and how many design engineers don't ask for it.

How to Spec Without Getting It Wrong

Most specification errors happen early, when torque is estimated rather than calculated.

Start with the physics

Holding torque must exceed the gravitational torque of the attached component at its center of mass. A 600g display panel with its center of mass 120mm from the hinge axis creates roughly 0.71 N·m. Your hinge needs to exceed that — but not excessively, or the opening force becomes uncomfortable.

A 1.5× to 2× safety factor is typical. For that display, target range is around 1.0–1.4 N·m. That's a starting point for supplier conversations, not a final number before testing.

The question engineers forget

Ask: What's your production torque tolerance, and what does the decay curve look like at end-of-life?

A hinge rated at 1.2 N·m with ±30% production tolerance can legally ship at 0.84 N·m. If your panel needs 0.9 N·m to hold, you've already built the warranty claim into the product. Tighter tolerances cost more. Knowing how much variation your application can actually absorb is part of the spec job, not something to leave to the supplier's default.

Standard vs. custom

For most applications — laptop lids, control panel doors, equipment hatches — a standard product works. The engineering is done. Pick the torque value, confirm the mounting, validate.

Custom makes sense when geometry doesn't fit standard options, you need asymmetric torque (different resistance opening vs. closing), or the environment is unusual enough that standard test data doesn't apply. My second patent — US 9,609,770 — covers a ring-shaped polygonal torque shrapnel design that came directly from a customer requirement that standard products couldn't meet. Custom doesn't always mean expensive; it often means a modification, not a clean-sheet design.

The Mistake I See Most

An engineer selects a friction hinge based on initial torque rating. Product launches. Field returns start at 12–18 months. Hinge looks fine. Just doesn't hold anymore.

Almost always the same root cause: torque decay not accounted for in the spec. Initial torque was sufficient. End-of-life torque wasn't.

This is fixable before launch, not after. Ask for decay data from production-representative samples — not prototypes. Prototype assemblies are often broken in differently than production units. What matters is what cycle 20,000 looks like on a unit that came off the line six months into the product's commercial life.

If a supplier can't provide that data, either they don't have it or they don't think you need it.

FAQ

Can a friction hinge replace a gas spring?

Usually yes, with fewer components. A gas spring gives position-dependent force that varies across travel; a friction hinge gives consistent resistance throughout rotation. Cleaner for most lid and panel applications.

The exception is heavy doors where gravitational torque pushes past what a practical friction hinge can manage — at some point the required hinge becomes physically large, and a counterbalance system makes more sense.

How long do friction hinges actually last?

This is where I'm going to say something that will make some of my competitors uncomfortable.

A lot of manufacturers publish cycle life figures like 50,000 or 100,000 cycles. I've heard those numbers for years, from my time at Southco through to today at LEECO. The feedback I get from customers, consistently, is that real-world performance doesn't match what's on the datasheet.

I'm not saying those numbers are fabricated. I'm saying they're often generated under conditions that don't reflect actual use — controlled lab temperature, optimal load angle, no environmental exposure, break-in cycles that soften the friction interface before the count starts.

LEECO's rated life is 25,000 cycles at ±20% torque tolerance — numbers we can back with production data. Consumer electronics hinges generally fall in the 20,000–25,000 cycle range under real conditions. If a supplier quotes you 100,000 cycles, ask to see the test protocol before you build your product around that number.

What's the difference between a friction hinge and a detent hinge?

Friction hinge: holds at any angle, continuous resistance. Detent hinge: holds only at specific pre-defined angles, tactile click between stops. Different problems.

Continuous adjustment → friction hinge. Fixed repeatable positions → detent hinge. We've had customers ask for both in one product. Possible, adds complexity.

Does material affect long-term torque?

Yes, significantly. The material pairing at the friction interface determines initial torque, wear rate, and temperature sensitivity. Stainless on stainless galls under high load without surface treatment. Aluminum needs surface hardening to stay consistent. Initial torque rating alone doesn't tell you this.

When would I tell someone not to use a friction hinge?

If the panel is always fully open or fully closed — friction hinge is wasted cost. If the component is heavy enough that appropriate torque makes operation uncomfortable — look at gas springs or counterbalance. If positional holding is genuinely nice-to-have and the budget is constrained — a traditional hinge with a door stay still works.

I'd rather say this upfront than have the conversation after a product launch.

One Question to Answer Before You Decide Anything

Does the user need to choose where this panel stops?

Yes → friction hinge, torque sized and specified with a decay curve, validated at operating temperature.

No → traditional hinge, considerably cheaper.

The genuinely hard cases are in the middle: applications where positional control would improve experience but isn't strictly required. Those are judgment calls — budget, product positioning, how much the feel matters to the end customer. No universal answer. Anyone who tells you otherwise is selling something.

I'm happy to talk through specific applications, including ones where I'd probably steer you toward a simpler solution.
